Product Details:
|
| Item Name: | 2 Axis Metal TFT Milling Machine Digital Readout Unit | Usage: | 2 Axis Milling Machine Installation |
|---|---|---|---|
| System: | 2 Axis Milling TFT DRO SDS5-4VA | Scale Model: | KA-300 Ruler |
| Signal: | KA-300 Ruler: TTL / RS422 | Resolution: | KA-300 Ruler: 0.005mm/0.001mm |
| Voltage: | Digital Readout Unit: AC 100V-240V | Meas. Travel: | KA-300 Ruler 70-1020mm |
| High Light: | Multilingual Mini Mill DRO,2 Axes Mini Mill DRO,TFT Digital Readout Screen |
||
SINO 2 Axes Metal TFT Milling Machine Digital Readout Unit SDS5-4VA With Two Linear Rulers
This digital readout unit is special for 2 axis milling machine installations.

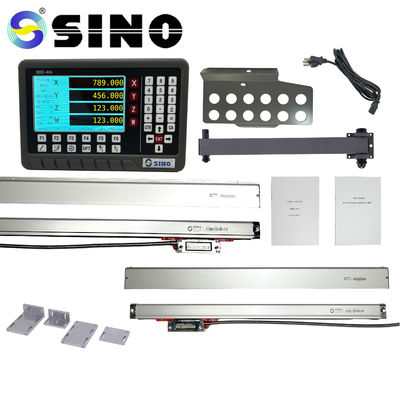

One metal TFT digital readout DRO SDS5-4VA with two standard linear rulers KA-300.
Package list:
| Item name | 2 axis metal TFT milling machine digital readout unit |
| Digital Readout (DRO) | SDS5-4VA |
| Linear scale for axis X | 670-1020mm |
| Linear scale for axis Y | 370-570mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type C |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 set) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
