Product Details:
|
| Item Name: | Three Axes TFT Boring Machine Digital Readout Unit | Usage: | Three Axes Boring Machine Positioning |
|---|---|---|---|
| System: | TFT Digital Readout SDS5-4VA | Scale Model: | KA-600/KA-300 Series Linear Glass Encoder |
| Signal: | TTL Or RS422/EIA-422-A Square Wave Signal | Resolution: | 0.5µm / 1µm / 5µm （inch Is Available) |
| Standard Cable: | Three Meters | Meas. Travel: | Glass Encoder Not Longer Than 3000 Mm |
| Display: | TFT Screen Display Unit | Voltage: | 5V For Encoders; 50-60Hz / 100-240V For Readout |
| High Light: | Three Axes CNC Digital Readout,TFT CNC Digital Readout,Multipurpose Linear Scale DRO System |
||
SINO three axes metal TFT boring machine digital readout unit SDS5-4VA with three KA linear encoders
This TFT digital readout unit is special for three axes boring machine requirement.
There are three KA-series linear encoders with one TFT DRO SDS5-4VA. For big machine, encoders should be KA-300 or KA-600 model.
And the standard cable of the scales is 3M long, sometimes extension cables are necessary for the big machine.
The length of extension cable should be 1M to 10M.

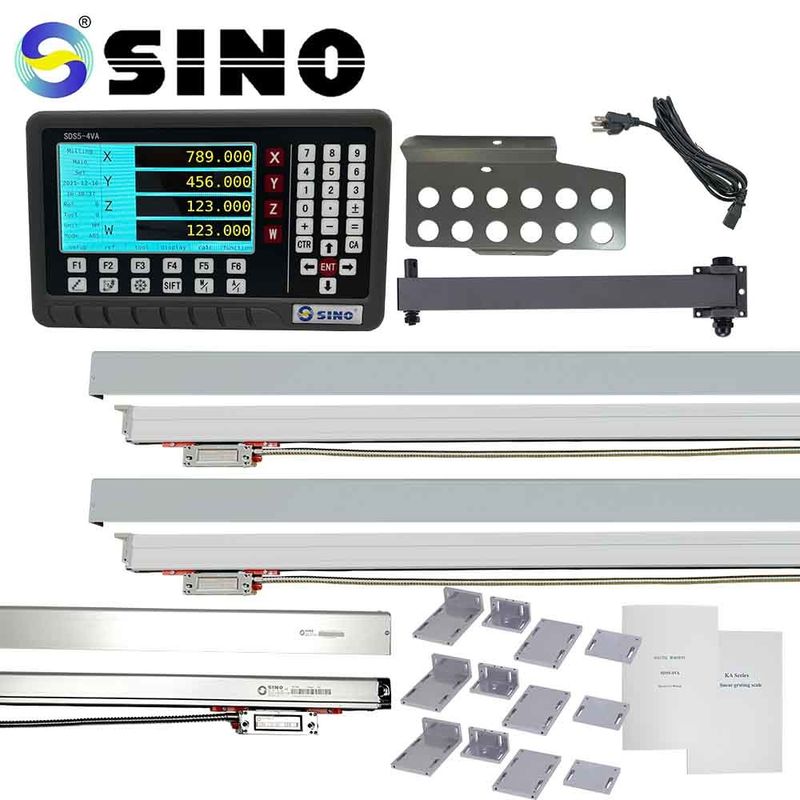

Package list:
| Item name | Three axes metal TFT boring machine digital readout unit |
| Digital Readout (DRO) | SDS5-4VA |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Protection cover for Z scale | Type D / M |
| Bracket for scales |
T-bracket (3 sets) |
| Others | Cable / Screws / Manual |
