Grey SINO Digital Readout DRO 3 Axis 1um Glass Linear Scale Meter

Brand Name:	SINO
Model Number:	SDS6-3V
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

Digital Readout SDS6-3V

Number Of Axis:

3 Axis Display

Color:

Display:

7 Digits LED

Signal:

Digital Readout: TTL / RS422

Voltage:

Digital Readout: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Lathe, Boring Machine, EDM Machine, Grinding Machine

Supply Ability:

1000 pcs per month

Highlight:

SINO Digital Readout

3 Axis SINO Digital Readout

Product Description

SINO Digital Readout DRO, 3 Axis 1um Glass Linear Scale Meter for Milling Lathe

SINO 3 Axis LED Digital Readout System DRO SDS6-3V

The SDS6-3V offers a high performance universal display console with Milling, Lathe and Grinding functions.
SDS6 Digital Readout employs the newest16 bit SCM technology, can substitute all kinds of basic function and special required function of SDS2 Series, an all-purpose DRO.
The speed of measurement is faster, and the control system is easier and smoother.Each axis can supply 40 points of non-linear compensations.

Improved Functions of Sino Digital readout DRO

Enlarge the calculator function:

Not only add the calculator function into the program of EDM, lathe, milling machines of the DRO, but also have the choice to select the number of digits behind the radix point, like 3, 4 or 5 digits to enhance the calculating phance the calculating precesion.

Non-linear error compensation:

The system has maximum 40 sections non-linear error compensation to improve the machining precision.

3. In inch display mode, the numbers of decimal digits can be chosen:

The numbers of decimal digits can be chosen as four or five. Four digits can satisfy the long scales' requirement, and five digits can be for the high precision requirements. Please review the manual for the detail about differences.

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz,US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Display resolution: 5µm/1µm/0.5µm/0.1µm

Min resolution of digital display angle : 0.0001/pulse

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

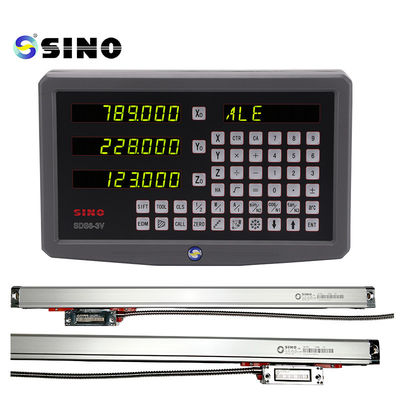

Grey SINO Digital Readout DRO 3 Axis 1um Glass Linear Scale Meter 0

Grey SINO Digital Readout DRO 3 Axis 1um Glass Linear Scale Meter 1

Grey SINO Digital Readout DRO 3 Axis 1um Glass Linear Scale Meter 2

The rack in the picture is optioned, not standard product.

Grey SINO Digital Readout DRO 3 Axis 1um Glass Linear Scale Meter 3
