Product Details:
|
| Name: | SINO SDS2-3VA 3 Axis Digital Readout System For Milling Lathe KA300-70mm Linear Scale Optical Encoder With Multi-languag | Number Of Axis: | 3 Linear Scales Encoder 3 Axis DRO System |
|---|---|---|---|
| Color: | Grey/black-Colors | Signal: | Digital Readout: TTL / RS422 |
| Voltage: | Digital Readout: AC100-240V / 50-60Hz | Suitable For: | Grinding Machine, EDM Machine |
| Resolution: | 1um,5um,0.5um | Material: | Metal |
| High Light: | SINO SDS2-3VA 3 Axis Digital Readout,3 Axis Digital Readout Multi Language |
||
Milling Lathe LCD DRO Digital Readout SDS2-3VA 3 Axis KA300-70mm Linear Scale Optical Encoder
LCD Display: The digital readout unit features a user-friendly LCD display that shows accurate and clear numerical readings, enhancing visibility and ease of use.
SDS2-3VA Digital Readout: The SDS2-3VA digital readout unit ensures high precision and accuracy in measuring the position of the machine axes, delivering reliable results for milling and lathe operations.
KA300-70mm Linear Scale Optical Encoder: The KA300-70mm linear scale optical encoder is a robust and durable encoder that offers excellent resistance to environmental factors, ensuring reliable position feedback even in harsh working conditions.
Three-Axis Measurement: The system supports three machine axes (X, Y, Z), allowing simultaneous measurement and monitoring of their positions.
Easy Installation: The system is designed for easy installation on milling and lathe machines, providing a seamless integration into existing setups.
Suitable Applications:
Milling Machines: The 3-axis digital readout system is well-suited for milling machines, providing essential measurement feedback for precise machining operations.
Lathe Machines: The system is also suitable for lathe machines, enabling accurate positioning of the cutting tools and workpieces.
Precision Engineering: Industries involved in precision engineering, such as aerospace, automotive, and tool manufacturing, can benefit from the high accuracy and reliability of this digital readout system.
Advantages
-Support the following five languages: French, German, Spanish, English, and Chinese.
-Basic, user-friendly system
- Large, highly clear LCD screen
-The DRO is compatible with all Chinese-made linear scales.
SDS2-3VA LCD DRO Features:
Frequently found in lathe, drilling, boring, and milling equipment, the LCD display is compatible with all Chinese optical linear glass scales.
It is very helpful for users of milling machines and lathes from other countries since it can switch between Chinese and English on a single display.
Assessment
The model SDS2-3VA
Input voltage: AC80-240V
TTL signal input
Made of plastic cover
Plug: AU, EU, US, UK, and so forth.
Specifications of SINO SDS2-3VA digital readout system + linear scale encoder
The SDS2-3VA is a high-performance universal display console that may be used for milling, latheing, and grinding.
Up to three linear encoders can be connected to this three-axis kind. There are other interfaces available to combine axes or alter the input to fit equipment manufactured by other manufacturers. Please see the encoder compatibility guide below.
robust die cast housing with a long-lasting and haptic front panel membrane.
big LCD panel with good readability.
Among the features are PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets.
| 1 PC | 3 Axis LED digital readout SDS2-3Va |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

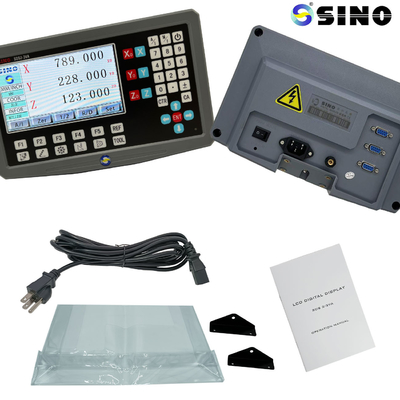

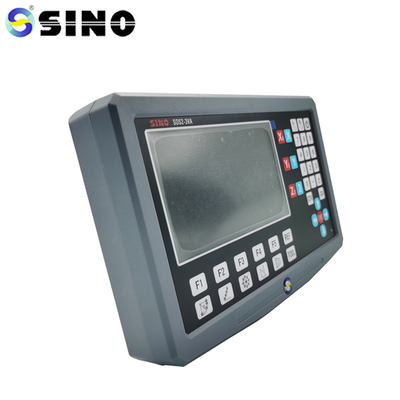

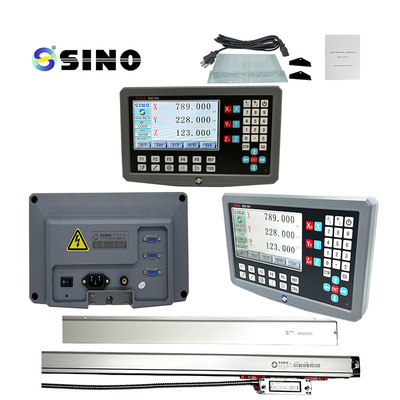

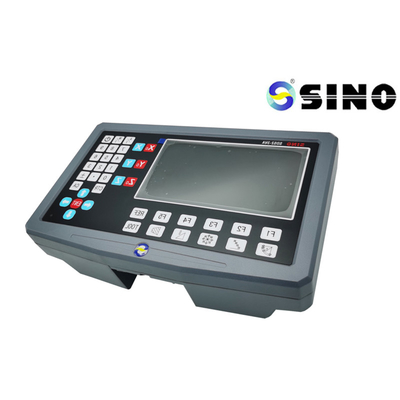

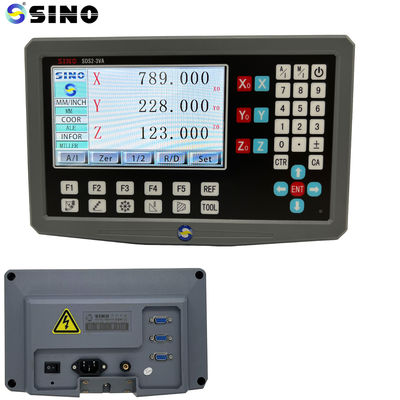

Product image /photos:
The rack in the picture is optioned, not standard product.
