SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal

SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal
SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal

Large Image :  SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS2-3VA, KA300, Ka500
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100011 pcs per month

SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal

Description
Name: SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler & TTL/RS422 Signal Number Of Axis: 3 Axis Digital Readout Encoder Ka300
Color: Grey-Colors Signal: Digital Readout System: TTL / RS422
Voltage: Lcd Digital Readout Kits: AC100-240V / 50-60Hz Suitable For: Milling Machine, Boring Machine, Lathe
Resolution: 1um,5um,0.5um Material: Metal
Enclosure: IP67 Protection
High Light:

SINO SDS2-3VA 3 Axis Digital Readout

,

TTL RS422 3 Axis Digital Readout

SINO SDS2-3VA 3 Axis Digital Readout Meter KA300 Glass Linear Ruler TTL/RS422 Signal​





Product Description:


The SINO SDS2-3VA 3 Axis Digital Readout Meter, along with the KA300 Glass Linear Ruler, is a comprehensive measurement and display system designed for industrial applications. It utilizes advanced technology to provide accurate and reliable measurements of axis movements in various machines. The digital readout meter supports TTL/RS422 signals, ensuring compatibility with a wide range of equipment.



Key Features:



3 Axis Digital Readout Meter: The SDS2-3VA features a digital readout meter capable of simultaneously displaying measurements from three different axes, enabling efficient and precise monitoring of machine movements.
KA300 Glass Linear Ruler: The system uses the KA300 Glass Linear Ruler, which is a high-quality linear scale with exceptional accuracy and durability.
TTL/RS422 Signal Compatibility: The digital readout meter supports both TTL and RS422 signal interfaces, ensuring compatibility with different machines and equipment.
Clear Display and User Interface: The meter features a clear and easy-to-read display, along with an intuitive user interface that allows for easy operation and configuration.
Flexible Mounting Options: The system offers flexible mounting options for the linear ruler, allowing it to be easily installed on different machines and equipment.


Usage:


The SINO SDS2-3VA 3 Axis Digital Readout Meter along with the KA300 Glass Linear Ruler is primarily used for precise measurement and display of axis movements in various industrial machines. It enables operators to monitor and control machine operations accurately, ensuring optimal performance and productivity.

Suitable Applications:

Milling Machines: The digital readout meter and linear ruler combination is commonly used in milling machines to monitor the movement of the workpiece and tools, enabling precise machining operations.
Lathes: It is also applicable in lathes to accurately measure and display the movement of the cutting tool, resulting in precise turning, facing, and threading operations.
Drilling Machines: The system can be utilized in drilling machines for monitoring and controlling the drilling depth and position with high accuracy.
Grinding Machines: It is suitable for grinding machines, allowing operators to measure and control the movement of the grinding wheel for precise material removal.
Other Machine Tools: The SDS2-3VA digital readout meter and KA300 linear ruler combination can be used in various other machine tools that require accurate positioning and measurement of axis movements.



SINO SDS2-3VA digital readout system specifications plus a glass linear scale



Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.



Packaging List :

1 PC 3 Axis LED digital readout SDS2-3Va
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

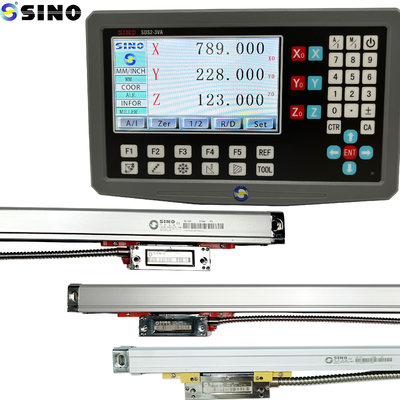

SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal 0

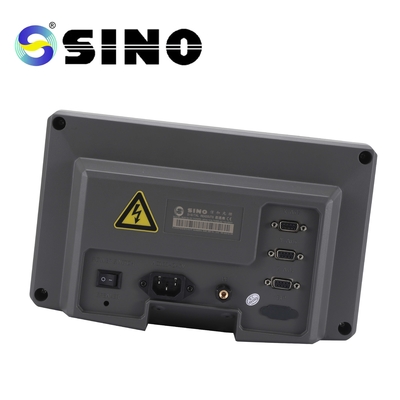

SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal 1

The rack in the picture is optioned, not standard product.



SINO SDS2-3VA 3 Axis Digital Readout Meter With KA300 Glass Linear Ruler TTL RS422 Signal 2
