Product Details:
|

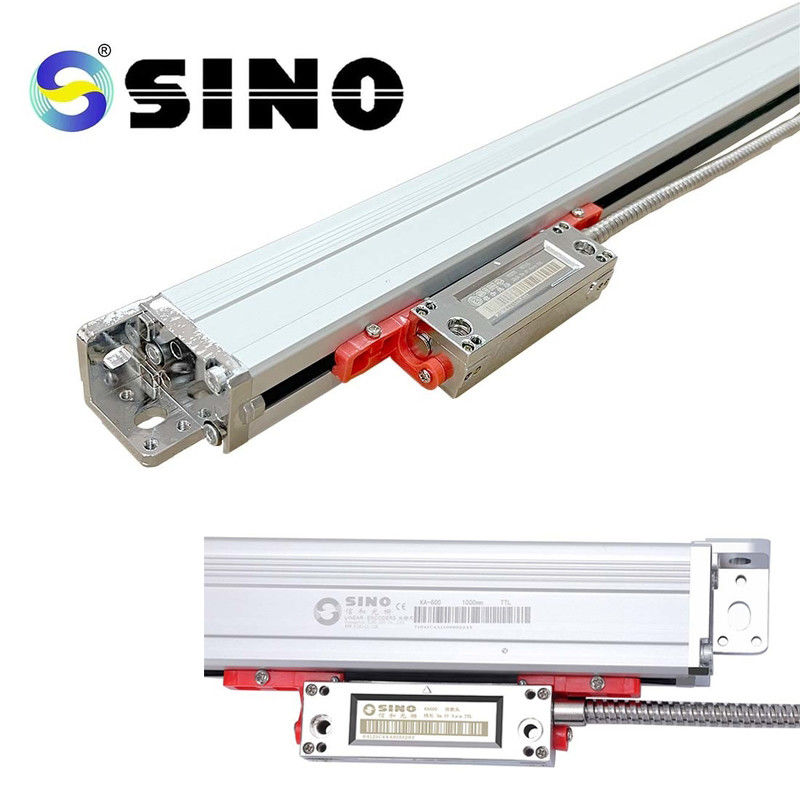

| Item Name: | SINO KA600-1000mm Linear Scale | Application: | Lathe/Grinder/Boring Machine DRO |
|---|---|---|---|
| Usage: | Position Control Tool | Feature: | Digital Readout Accesory |
| Sealing Protection: | IP53 | Output Signal: | TTL/RS-442 |
| Length: | 1000-3000mm | Resolution: | 0.5/1/5 Micron |
| High Light: | CE SINO KA300 Linear Glass Scale,IP53 SINO KA300 Linear Glass Scale,0.005mm Linear Motion Encoder |
||
Package included:
KA600 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of encoder (L0) can be provided according to the users' needs.(Length:1000-3100mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA600-1000 | 1000 | 1150 | 1170 | KA600-2100 | 2100 | 2250 | 2270 |
| KA600-1100 | 1100 | 1250 | 1270 | KA600-2200 | 2200 | 2350 | 2370 |
| KA600-1200 | 1200 | 1350 | 1370 | KA600-2300 | 2300 | 2450 | 2470 |
| KA600-1300 | 1300 | 1450 | 1470 | KA600-2400 | 2400 | 2550 | 2570 |
| KA600-1400 | 1400 | 1550 | 1570 | KA600-2500 | 2500 | 2650 | 2670 |
| KA600-1500 | 1500 | 1650 | 1670 | KA600-2600 | 2600 | 2750 | 2770 |
| KA600-1600 | 1600 | 1750 | 1770 | KA600-2700 | 2700 | 2850 | 2870 |
| KA600-1700 | 1700 | 1850 | 1870 | KA600-2800 | 2800 | 2950 | 2970 |
| KA600-1800 | 1800 | 1950 | 1970 | KA600-2900 | 2900 | 3050 | 3070 |
| KA600-1900 | 1900 | 2050 | 2070 | KA600-3000 | 3000 | 3150 | 3170 |
| KA600-2000 | 2000 | 2150 | 2170 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
