Product Details:
|
| Item Name: | SINO KA600 Linear Grating Encoders | Application: | Milling Machine/Lathe/Grinder/EDM |
|---|---|---|---|
| Usage: | Position Gauge Equipment | Sealing Class: | IP53 |
| Output Signal: | TTL/RS-442 | Encoder Length: | 1000mm-3100mm |
| Resolution: | 0.5/1/5 Micron | ||
| Highlight: | 5 Micron CNC Glass Scales,Lathe CNC Glass Scales,Aluminum Alloy Optical Linear Encoder |
||

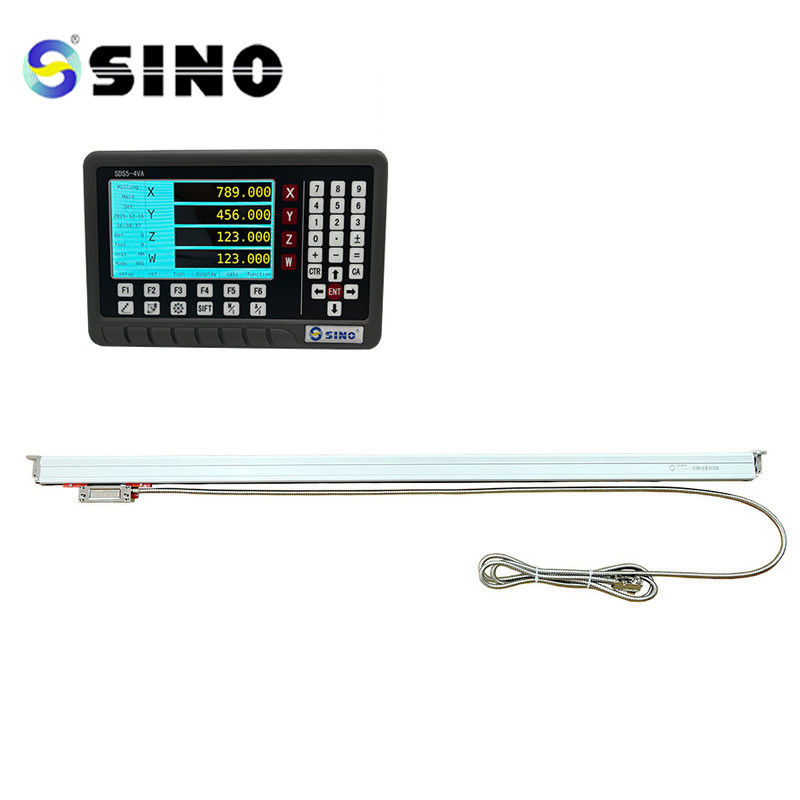

SINO KA600 Glass Scale Linear Grating Encoders For Lathe EDM Digital Readout
Package included:
KA600 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of encoder (L0) can be provided according to the users' needs.(Length:1000-3100mm)
The SINO linear scale is known for its high precision, durability, and resistance to environmental factors such as dust, temperature variations, and vibrations. It is commonly used in conjunction with milling machines, lathes, coordinate measuring machines (CMMs), and other industrial equipment that require precise positioning or dimensional measurements.
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA600-1000 | 1000 | 1150 | 1170 | KA600-2100 | 2100 | 2250 | 2270 |
| KA600-1100 | 1100 | 1250 | 1270 | KA600-2200 | 2200 | 2350 | 2370 |
| KA600-1200 | 1200 | 1350 | 1370 | KA600-2300 | 2300 | 2450 | 2470 |
| KA600-1300 | 1300 | 1450 | 1470 | KA600-2400 | 2400 | 2550 | 2570 |
| KA600-1400 | 1400 | 1550 | 1570 | KA600-2500 | 2500 | 2650 | 2670 |
| KA600-1500 | 1500 | 1650 | 1670 | KA600-2600 | 2600 | 2750 | 2770 |
| KA600-1600 | 1600 | 1750 | 1770 | KA600-2700 | 2700 | 2850 | 2870 |
| KA600-1700 | 1700 | 1850 | 1870 | KA600-2800 | 2800 | 2950 | 2970 |
| KA600-1800 | 1800 | 1950 | 1970 | KA600-2900 | 2900 | 3050 | 3070 |
| KA600-1900 | 1900 | 2050 | 2070 | KA600-3000 | 3000 | 3150 | 3170 |
| KA600-2000 | 2000 | 2150 | 2170 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
