Product Details:
|
| Operating Temperature: | 0℃ - 45℃ | Packaging Details: | Carton Box |
|---|---|---|---|
| Keyword: | Dro For Lathe Machine | NameAxes No.: | Digital Readout Linear Scale |
| Usage: | Woodworker, Lathe, Milling Machine, Bridgeport | Axes No.: | 1/2/3/4/5 Axis |
| Display Resolution: | 0.1μm, 0.5μm, 1μm, 5μm | Shell: | Aluminum |
| Power Supply: | 110V / 220V | Output Signal: | TTL/RS422 |
| Power Consumption: | 25VA | Power: | Electronic |
| Frequency Response: | 50Hz~60Hz | Warranty: | OEM, ODM, OBM |
| Seal Protection: | IP67 | ||
| High Light: | OBM Magnetic Linear Encoder,Aluminum Magnetic Linear Encoder,25VA Magnetic Linear Scale |
||
SINO High Precision 422 Output, IP67 Magnetic Scale, 5um 1um 3000mm up to 100m Magnetic Linear Encoder for Woodworker, Lathe
Feature:
1. New 16 bit SCM technology, can substitute all kinds of basic functions and special request
2. Widely used in high accuracy coordinate boring machines, floor boring machines, high accuracy boring machines, high accuracy grinding machines, lathe, EDM machine, milling machine, and so on.
3. Accurate reading, each axis can supply 40 points of non-linear compensations.
4. Multi-language: Operator can choose their native language for operating.
5. Special previewing the drawing function, after setting well the parameter, the Dro will display the machined well effect which makes the operating be more visual.
6. Custom setting for the shortcut keys, the operator can set the shortcut keys according to his operating habit.
7. Single axis up to 5 axis input to work for high precision tool machines.
Product data sheet
| Model | KA800MC-5 |
| Travel length(mm) | 120mm to 100m |
| Scaling size | 5+5mm |
| Accuracy | ±(0.035+0.02x L) mm |
| Resolution(um) | 0.5 um |
| Cable core | 5 core or 8 core |
| Seal protection | IP67 |
| Max speed | 5 m/s |
| Output signal | TTL/EIA-422-A/RS422 |
| Operating temperature | -20℃--85℃ |
| Storage temperature | -20℃--85℃ |
| Humidity | 100% not condensed |
| Voltage | 5V//28V |

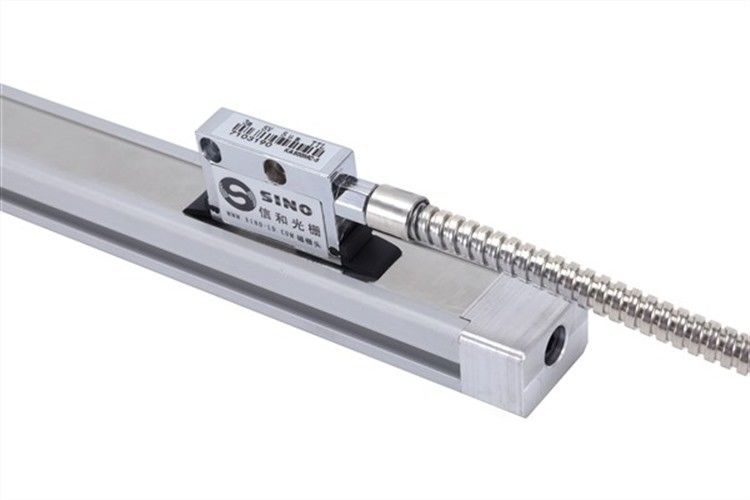

Product images
Why choose us?
Magnetic scale can be cut as your requirement
Fully sealed read-head with perfect structure of the profile akes it match IP67 protection class
Advanced technician and inner structure
Automatic gain control technician,reduced the requirement for installation,The gap between the reader and tape can be 3mm (5 micron)
Questions & Answer :
1, What’s max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent for ?
Answer : All these length mean table travel length ( table moving size , NOT table size ) of the machine x y z axis . You may need to add extra 5.5 inch for total length .
3, If i need full set of 2 Axis dro with scales for my lathe machine , how should i purchase them ?
Answer : You can select, they are " 1pc 2 Axis dro " " Travel length **mm of linear encoder or magnetic encoder" " Travel length ***mm" , then you will receive what you want .
4, My machine x axis moving length is 260mm , and y axis moving length is 530mm , can you offer this kind length that not listed in the options ?
Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 270mm scale and 570mm scale for your machine .
5, If i only buy 1 piece scale separately , can i get the user manual ?
Answer : The user manual comes with DRO , But you can contact the seller to get download .
6, What should I choose for my lathe or mill ?
Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis
7, Can I cut the scale if it's too long for my machine ?
Answer : Technicality NO. if you are novice , otherwise , the scale may probably be damaged and cannot be used
8, Are they all ship by Fed Ex, UPS, DHL ?
Answer : Yes. Standard FedEx support and others are available
