Product Details:
|
| Operating Temperature: | 0℃ - 45℃ | Packaging Details: | Carton Box |
|---|---|---|---|
| Keyword: | Linear Scale For Lathe, Milling,grinding Machine | NameAxes No.: | Digital Readout Linear Scale |
| Usage: | Woodworker, Lathe,Milling Machine,Bridgeport | Display Resolution: | 0.1μm, 0.5μm, 1μm, 5μm |
| Shell: | Aluminum | Power Supply: | 110V / 220V |
| Output Signal: | TTL/RS422 | Power Consumption: | 25VA |
| Power: | Electronic | Frequency Response: | 50Hz~60Hz |
| Warranty: | OEM, ODM, OBM | Seal Protection: | IP53 |
| Highlight: | SINO CNC Machine Accessories,Linear Encoder CNC Machine Accessories,570mm SINO Linear Encoder |
||

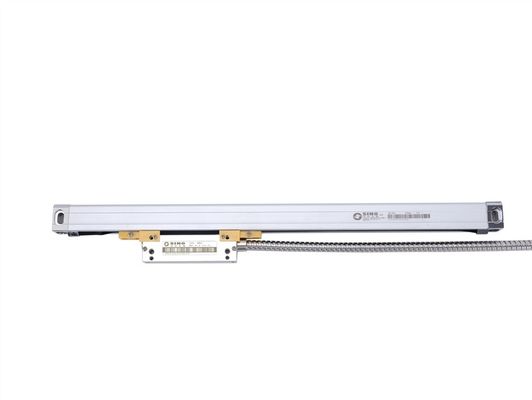

SINO Precise KA500 Thin Sino Linear Encoder 5μm Linear Glass Scale Ruler 70 - 570mm
Feature:
1. New 16 bit SCM technology, can substitute all kinds of basic functions and special request
2. Widely used in high accuracy coordinate boring machines, floor boring machines, high accuracy boring machines, high accuracy grinding machines, lathe, EDM machine, milling machine, and so on.
3. Accurate reading, each axis can supply 40 points of non-linear compensations.
4. Multi-language: Operator can choose their native language for operating.
5. Special previewing the drawing function, after setting well the parameter, the Dro will display the machined well effect which makes the operating be more visual.
6. Custom setting for the shortcut keys, the operator can set the shortcut keys according to his operating habit.
7. Single axis up to 5 axis input to work for high precision tool machines.
Product data sheet
| Model | KA500 slim thin |
| Travel length(mm) | 70 mm- 570mm |
| Power supply | +5v+-5%,80mA |
| Accuracy | ±(0.035+0.02x L) mm |
| Resolution(um) | 0.5 um,1um,5um |
| Cable core | 9 core |
| Seal protection | IP53 |
| Frequency Response | 50Hz~60Hz |
| Output signal | TTL/EIA-422-A/RS422 |
| Operating temperature | 0℃--45℃ |
| Storage temperature | -20℃--85℃ |
| Humidity | 100% not condensed |
| Voltage | 5V//28V |
Product images
Questions & Answer :
1, What are the length 100mm, 150mm, 200mm, ... 3000mm represent for ?
Answer : All these length mean table travel length ( table moving size , NOT table size ) of the machine x y z axis . You may need to add extra 5.5 inch for total length .
2, If i need full set of 2 Axis dro with 250mm ,1000mm scales for my cnc lathe machine , how should i purchase them ?
Answer : You can select the 3 options , they are " 1pc 2 Axis dro " " Travel length 250mm" " Travel length 1000mm" , then you will receive what you want .
3, My machine x axis moving length is 260mm , and y axis moving length is 530mm , can you offer this kind length that not listed in the options ?
Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 250mm scale and 550mm scale for your machine .
4, If i only buy 1 piece scale separately , can i get the user manual ?
Answer : The user manual comes with DRO , But you can contact the seller to get download .
5, What should i choose for my lathe or mill ?
Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis
6, Can i cut the scale if it's too long for my machine ?
Answer : Technicality NOT if you are novice , otherwise , the scale may probably be damaged and cannot be used .
7, Are they all ship by Fed Ex, UPS, DHL ?
Answer : Yes. Standard FedEx support and others are available
