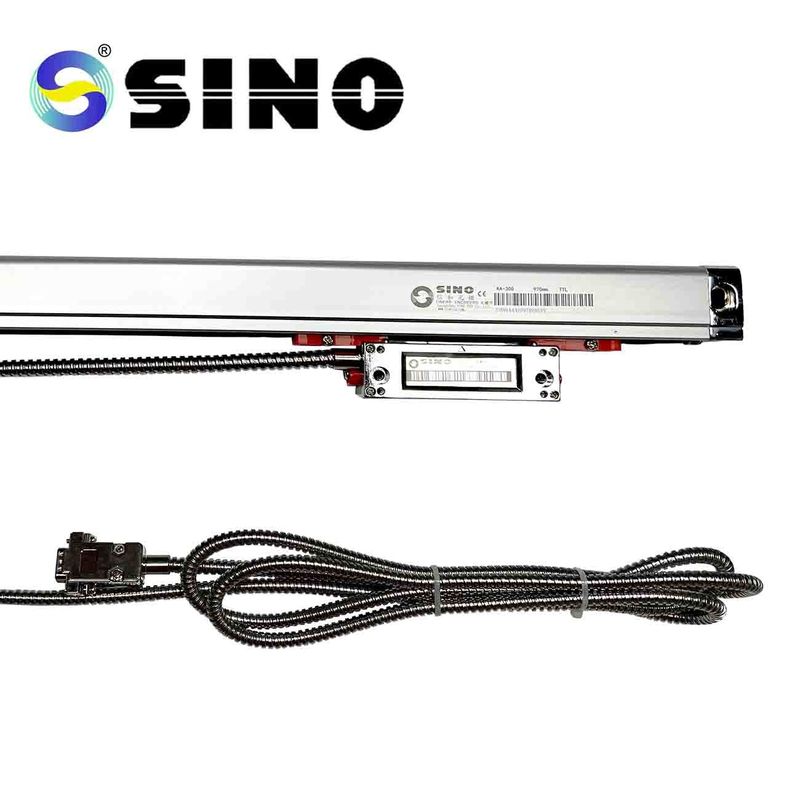

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function

Brand Name: SINO
Model Number: KA-300 520-1020mm
MOQ: 1 PC
Price: Negotiable
Packaging Details: Carton box
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
P.R.China
Certification:
CE, RoHS
Item:
SINO High Precision Aluminium Grating Linear Encoder Scale
Model:
KA-300 Series: 520-1020mm
Usage:
Metal Cutting Machine / Testing Equipment / Woodworker,
Type:
Standard Optical Grating Linear Encoder
Resolution:
0.5/1/5 Micron
Output Signal:
TTL Or RS422 Can Be Optioned
System:
SINO DRO SDS Series
Keyword:
Linear Scale / Grating Ruler
Supply Ability:
5000 per month
Highlight:

Aluminium Sino Linear Encoder

,

24V Sino Linear Encoder

,

Multi Function Glass Scale Linear Encoder

Product Description



SINO High Precision Aluminium Grating Linear Encoder Scale KA-300 520 to 1020mm



KA-300 series linear encoder is the most commonly used standard model.





Product data sheet





Model KA-300 series
Travel length(mm) 70-1020 (50mm/Specification)
Scaling distance 0.02mm(50 lines/mm)
Accuracy ±3/±5/±15µm 20℃
Resolution(um) 5,1,0.5 micron
Reference Signal Every 50mm per length specification
Seal protection IP53
working speed (resolution)>=5um: >=60m/min <=1um: >=120m/min
Output signal Square wave TTL / RS422
Operating temperature 0℃-45℃
Storage temperature -20℃--80℃
Humidity 100% not condensed
Voltage 5V/24V





Package list: 1 * KA300 Linear encoder scale, 1 *screw sets



Protection Cover is not included. It can be optioned by different propose.





Product images

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 0

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 1

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 2





Covers' Options

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 3

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 4

All scales will be tested before delivery.

Each scale have its own test report:

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 5

It's a sample that KA-300 linear encoder on axis X of milling machine:

Aluminium 24V Sino Glass Linear Encoder Scale Multi Function 6
