Product Details:
|
Item Name: | 3 Axes Metal LED Milling Machine Digital Readout Package | Usage: | 3 Axes Milling Machine Installation And Positioning |
---|---|---|---|
System: | 3 Axes LED Digital Readout SDS6-3V | Scale Model: | KA-300 Linear Encoder |
Signal: | Linear Encoder: TTL Or EIA-422-A | Resolution: | Linear Encoder: 0.5/1/5 Micron |
Voltage: | Digital Readout: AC 100V-240V, 50-60Hz | Meas. Travel: | Linear Encoder: 70-1020mm |
High Light: | Metal Digital Readout 2 Axis,LED Digital Readout 2 Axis,Milling Machine DRO Kits |
SINO 3 axis metal LED milling machine digital readout package SDS6-3V with three linear encoders
The digital readout package is special for 3 axis milling machine installation and positioning.

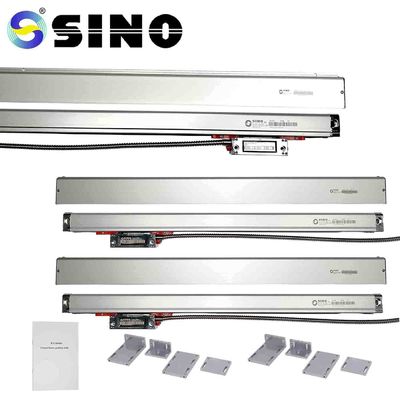

One 3-axis LED digital readout SDS6-3V with three standard linear encoders KA-300.
Package list:
Item name | 3 axes metal LED milling machine digital readout package |
Digital Readout (DRO) | SDS6-3V |
Linear scale for axis X | 670-1020mm |
Linear scale for axis Y | 370-570mm |
Linear scale for axis Z | 370-570mm |
Rack for DRO | L400 |
Protection cover for X scale | Type C |
Protection cover for Y scale | Type D |
Protection cover for Z scale | Type D |
Bracket for scales | T-bracket (2 sets) |
Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
