Product Details:
|
Item Name: | 2 Axes Economy LED Milling Machine DRO Set | Usage: | 2 Axes Milling Requirement |
---|---|---|---|
System: | 2 Axes LED DRO SDS2MS | Scale Model: | KA-300 Grating Scale |
Signal: | Grating Scale: TTL / EIA-422-A | Resolution: | Grating Scale: 0.005mm Or 0.001mm |
Voltage: | LED DRO: AC 100V-240V | Meas. Travel: | Grating Scale: 70-1020mm |
Highlight: | 2 Axes Optical Angle Encoder,102cm Optical Angle Encoder,Milling SINO Linear Encoder |

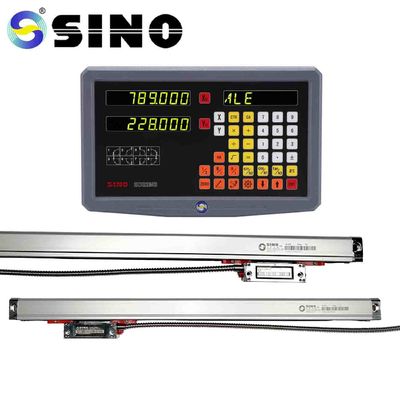

SINO 2 axes economy LED milling machine DRO set SDS2MS with two grating scales
The DRO set is special for 2 axes milling requirement.
One 2-axis LED display DRO SDS2MS with two standard grating scales KA-300.
Package list:
Item name | 2 axes economy LED milling machine DRO set |
Digital Readout (DRO) | SDS2MS |
Linear scale for axis X | 670-1020mm |
Linear scale for axis Y | 370-570mm |
Rack for DRO | L400 |
Protection cover for X scale | Type C |
Protection cover for Y scale | Type D |
Bracket for scales | T-bracket (1 set) |
Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
