Product Details:
|
Name: | Digital Readout SDS6-2V | Number Of Axis: | 2 Axis Display |
---|---|---|---|
Case: | Metal Case | Display: | Green LED Display |
Signal: | Readout Input: TTL / RS422 / EIA-422-A | Power: | AC 100V-240V / 50Hz-60Hz |
Usage: | 2 Axis Display Requirement | ||
Highlight: | 2 Axis SINO Digital Readout System,LED SINO Digital Readout System,SDS6-2V |

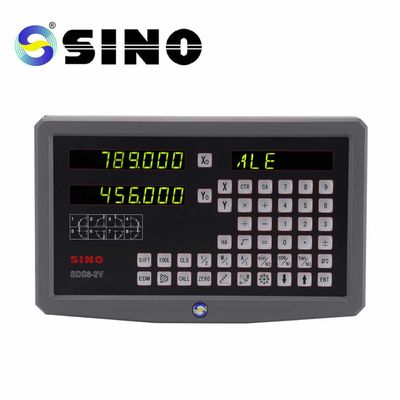

SINO 2 Axis LED Digital Readout System DRO SDS6-2V
SDS6 series is the most popular series. They had been widely used in high precision coordinate boring machine, floor boring machine, grinding machine, lathe, milling machine and so on. It’s allowed to input the high frequency of A/B signals up to 5MHz. It employs the newest 16 bits SCM technology, can subsititute nearly all kinds of requirement.The speed of measurement is faster, and the control system is easier and smoother. Each axis can supply 40 points of non-linear compensations to increase the accuracy.
SDS6-2V is the 2-axis display version of SDS6 series.
Basice information:
Available voltage: AC100~240V; 50~60Hz, different plug is possible
Power consumption: 15VA
Operating temperature: 0~45 degrees centigrade
Storage temperature: -30~70 degrees centigrade
Readout allowable input signal: TTL/RS422 square wave
Allowable input signal frequency: Less than 5MHz
Max resolution of digital display length: 5µm (0.005mm/0.0002")
Min resolution of digital display angle :0.0001/pulse
Strengthen Functions:
The system can change the decimal digits to be three, four or five digits to improve the calculating precision.
The system has the maximum 40 sections non-linear error compensation to improve the machining precision.
4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.
RS-232-C interface can be required.
1 PC | 2 Axis LED digital readout SDS6-2V |
1 PC | Transparent cover |
1 PC | Instruction Manual (English) |
1 PC | Power Cable |
Product image /photos:
The rack in the picture is optioned, not standard product.
