Name: RoHS Absolute Optical Angle Encoder Three Axes For Milling Machine
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: SDS2-3VA, KA-300*3
Availability: InStock

Brand Name:	SINO
Model Number:	SDS2-3VA, KA-300*3
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

3 Axes TFT Milling Machine DRO Kit

Usage:

3 Axes Milling Machine Positioning

System:

3 Axes TFT DRO SDS2-3VA

Scale Model:

KA-300*3

Display:

TFT Unit

Resolution:

KA-300: 0.005mm/0.001mm

Voltage:

TFT DRO: AC 100V-240V

Meas. Travel:

KA-300: 70-1020mm

Supply Ability:

3000 sets per month

Highlight:

RoHS Optical Angle Encoder

Three Axes Optical Angle Encoder

Milling Optical Absolute Encoder

Product Description

SINO 3 axes Economy TFT milling machine DRO kit SDS2-3VA with three linear scales

The DRO kit is special for 3 axes milling machine requirement.

One TFT display DRO SDS2-3VA with three standard linear scales KA-300.

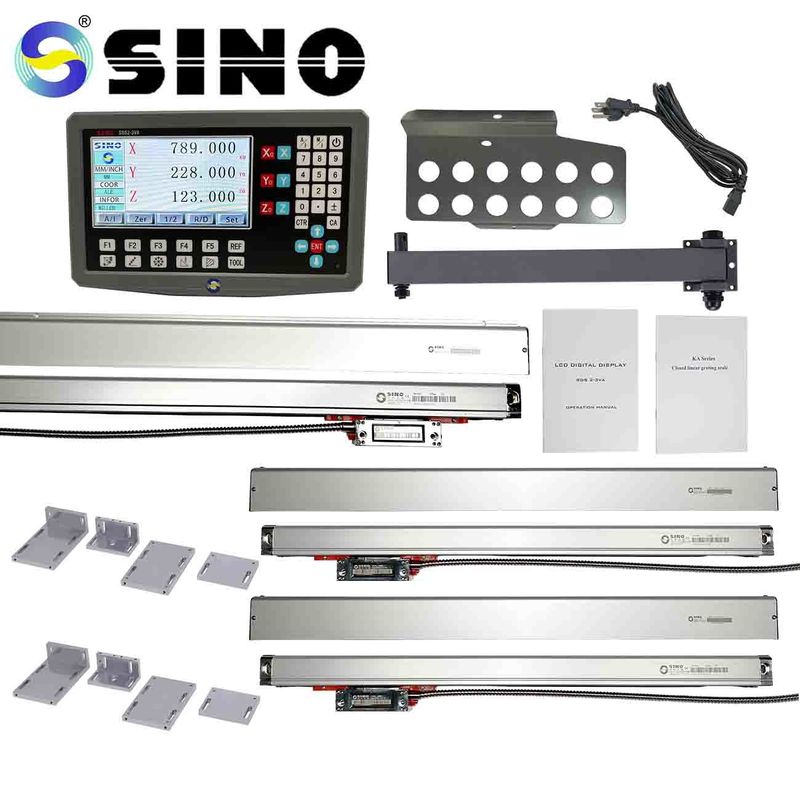

Package list:

Item name	3 axes TFT milling machine DRO kit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Linear scale for axis Z	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Protection cover for Z scale	Type D
Bracket for scales	T-bracket (2 sets)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Simple “R”
Oblique Line Hole Positioning
PCD Circle Equally Dividing
Bevel Processing

Detail Information:

RoHS Absolute Optical Angle Encoder Three Axes For Milling Machine 0

RoHS Absolute Optical Angle Encoder Three Axes For Milling Machine 1

RoHS Absolute Optical Angle Encoder Three Axes For Milling Machine 2

Pin Description:

RoHS Absolute Optical Angle Encoder Three Axes For Milling Machine 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

RoHS Absolute Optical Angle Encoder Three Axes For Milling Machine 4
