Product Details:
|
| Name: | Digital Readout SDS 200 | Display: | LCD Screen |
|---|---|---|---|
| Number Of Display: | 2 / 3 / 4 Axis | Number Of Connection: | 1 / 2 / 3 / 4 Axis |
| Case: | Metal | Signal: | TTL / RS422 |
| Voltage: | AC 100V-240V | Size: | 285*195*53cm |
| High Light: | 4 Axis SINO Digital Readout System,Metal SINO Digital Readout System,53cm LCD Digital Readout |
||

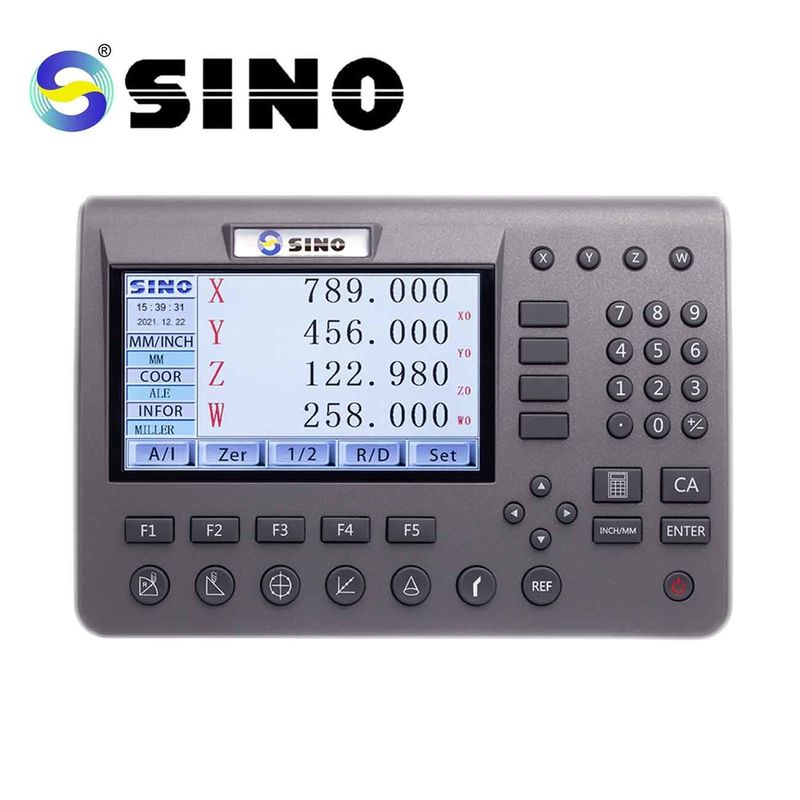

SINO 4 Axis Metal LCD Digital Readout System DRO SDS 200
SDS 200 is a metal LCD DRO. It's able to connect four axes of different encoders: linear, rotary or angle ones.
It can be widely used in all kinds of requirement well.
Feature:
| 1. New 16 bit SCM technology, can substitute all kinds of basic functions and special request |
| 2. Widely used in high accuracy coordinate boring machines, floor boring machines, high accuracy boring machines, high accuracy grinding machines, lathe, EDM machines, milling machines, and so on. |
| 3. Accurate reading, each axis can supply 40 points of non-linear compensations. |
| 4. Multi-language: Operator can choose their native language for operating. |
| 5. Single axis up to 4 axis input to work for high precision tool machines. |
Specifications :
Supply Voltage range: 50~60Hz, AC 100V~240V, different plug is available
Power consumption: 25VA
Working temperature: 0~45 degrees centigrade
Storage temperature: -30~70 degrees centigrade
Readout allowable input signal: TTL square wave
Allowable input signal frequency: Less than 5M Hz
Display resolution: 5 / 1 / 0.5 / 0.1µm
Min resolution of digital display angle : 0.0001/pulse
| 1 PC | Metal LCD DRO SDS 200 |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Power Cable |
Product image /photos:
The rack in the picture is optioned, not standard product.
Size:
