Product Details:
|
Item Name: | Economy LED Milling Machine DRO Milling Head Kit | Usage: | Milling Head Positioning |
---|---|---|---|
System: | LED DRO SDS2-3MS Special For Milling Header | Scale Model: | Grating Scale KA-300, KA-500 |
Signal: | TTL Or RS422 | Resolution: | 0.005mm Or 0.001mm |
Voltage: | AC100V-240V | Meas. Travel: | X/Y: 70-1020mm, Z: 170mm |
Highlight: | RoHS 3 Axis Digital Readout DRO,RS422 3 Axis Digital Readout DRO,3 Axis Digital Readout For Milling Machine |
SINO 3 axis economy LED milling machine DRO kit SDS2-3MS for aixs Z milling head grating scale
The package is special for 3 axis milling machine requirement, and the axis Z is special for milling head's scale.

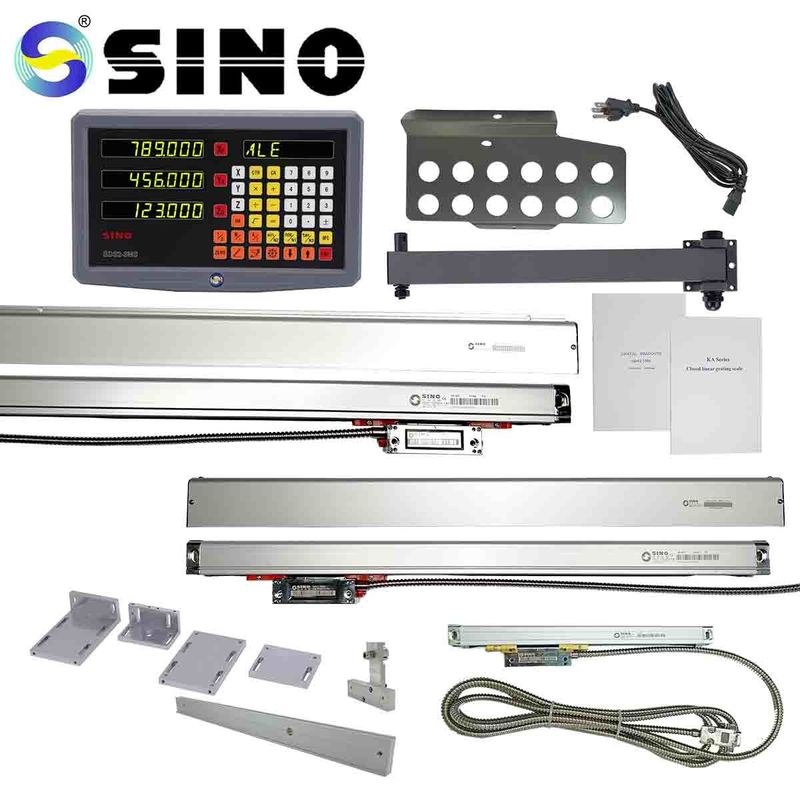

One economy LED 3-axis display DRO SDS2-3MS with two standard linear scales KA-300 and one mini scale KA-500.
Package list:
Item name | economy DRO milling head kit |
Digital Readout (DRO) | SDS2-3MS |
Linear scale for axis X | KA-300: 670-1020mm |
Linear scale for axis Y | KA-300: 370-570mm |
Linear scale for axis Z | KA-500: 170mm |
Rack for DRO | L400 |
Protection cover for X scale | Type C |
Protection cover for Y scale | Type D |
Accessory for Z Milling head | KA-500 milling head accessory (1 set) |
Bracket for scales | T-bracket (1 set) |
Others | Cable / Screws / Manual |
