Manual Mini Lathe Machine DRO Kit LED Display Square Wave Signal
  • name
  • name

Manual Mini Lathe Machine DRO Kit LED Display Square Wave Signal

Brand Name: SINO
Model Number: SDS6-2VF, KA-300, KA-500
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
2 Axis RS232-C Metal LED Lathe Machine DRO System
Usage:
2 Axis Lathe Positioning With RS232-C Output
System:
2 Axis RS-232-C DRO SDS6-2VF
Scale Model:
KA-300 & KA-500 Series
Signal:
Square Wave Signal
Resolution:
5 Micron / 0.0002 Inch
DRO Mounting:
On The Electric Box By Rack
Meas. Travel:
KA-300: 770-1020mm / KA-300: 270-520mm
Display:
3 Axis LED
Voltage:
DRO 100V - 240V / Ruler +5V
Supply Ability:
3000 sets per month
Highlight:

Manual Lathe Machine DRO

,

LED Lathe Machine DRO

,

Square Wave Mini Lathe DRO Kit

Product Description

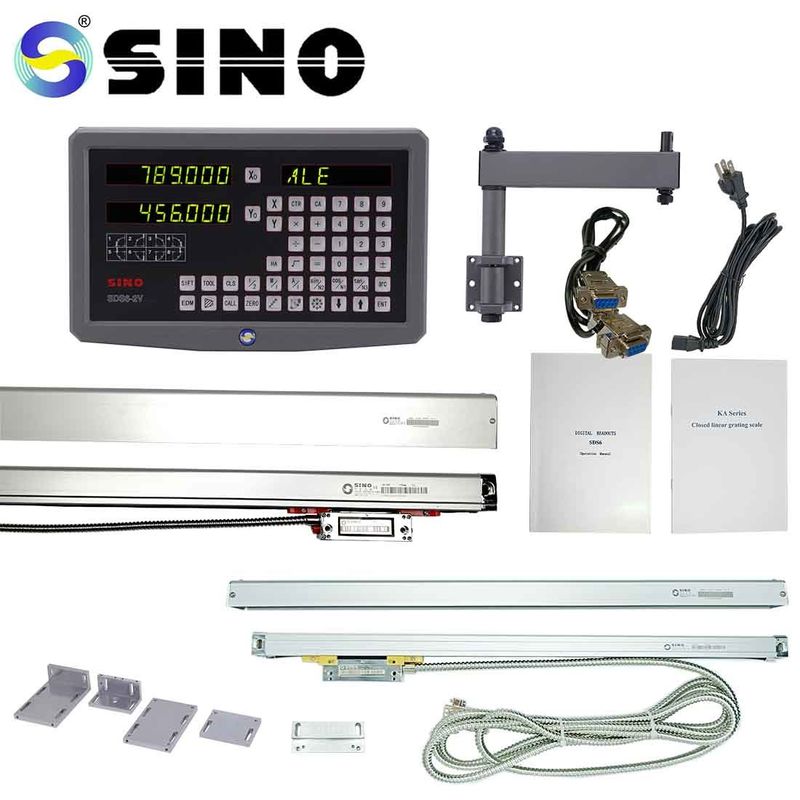

SINO 2 axis metal lathe DRO system RS232-C SDS6-2V mounting on electric box with two Glarss rulers



This DRO system is special for 2 axis lathe positioning with RS-232-C output interface.



The RS232-C output DRO SDS6-2VF can be mounted on the lathe's electirc box by rack.



The KA-300 glass ruler should be for axis Z, and KA-500 glass ruler should be for axis X.



Package list:



Item name 2 axis RS232-C lathe machine DRO system
Digital Readout (DRO) SDS6-2VF
Linear scale for axis Z KA-300 720-1020mm
Linear scale for axis X KA-500 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type D
Protection cover for X scale Type H
Bracket for scales

T-bracket (1set) / KA-500 bracket (1pc)
Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom
