Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout

Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout
Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout

Large Image :  Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS5-4VA, KA-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout

Description
Item Name: 3 Axis Metal LCD Milling Machine Digital Counter Package Usage: 3 Axis Milling Or Boring Requirement
System: 3 Axis Milling Or Boring DRO SDS5-4VA Scale Model: Linear Encoders: KA-300
Signal: Linear Encoders: TTL / RS422 Resolution: Linear Encoders 0.005mm/0.001mm
Voltage: Counter Power AC 100V-240V Meas. Travel: KA-300: 70-1020mm
High Light:

Practical 3 Axis Mill DRO

,

TTL 3 Axis Mill DRO

,

TFT Milling Digital Readout

SINO 3 Axis Metal TFT Milling Machine DRO Kit SDS5-4VA With Three Linear Encoders



The digital counter package is special for 3 axis milling or boring requirements.

One TFT display digital counter SDS5-4VA with three standard linear encoders KA-300.

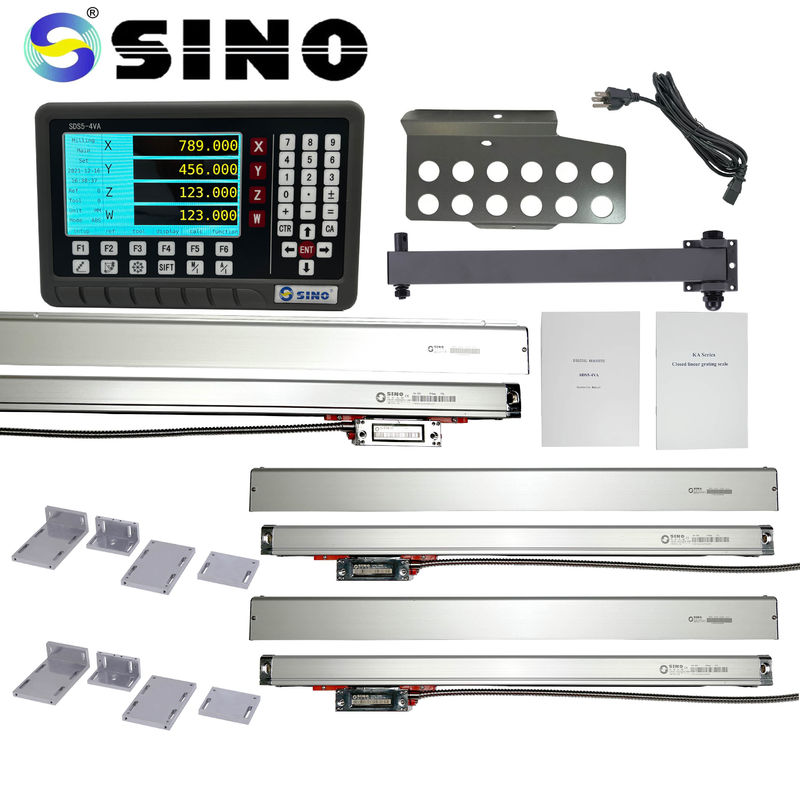

Package list:



Item name 3 axis metal TFT milling machine digital counter package
Digital Readout (DRO) SDS5-4VA
Linear scale for axis X 670-1020mm
Linear scale for axis Y 370-570mm
Linear scale for axis Z 370-570mm
Rack for DRO L400
Protection cover for X scale Type C
Protection cover for Y scale Type D
Protection cover for Z scale Type D
Bracket for scales T-bracket (2 sets)
Others Cable / Screws / Manual



Functions for milling machine:

  1. Midsplit
  2. Smooth “R”
  3. Simple “R”
  4. Oblique Line Hole Positioning
  5. PCD Circle Equally Dividing
  6. Bevel Processing
  7. Rectangular Inner Chamber Progressive Machining

Detail Information:



Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout 0



Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout 1

Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout 2



Pin Description:

Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout 3



All linear scales were tested before delivery. Here is a sample of a scale's test report.

Practical TTL Signal 3 Axis Mill DRO , TFT Milling Digital Readout 4
