Product Details:
|
| Item Name: | 3 Axis Metal LCD Milling Machine DRO Kit | Usage: | 3 Axis Milling Machine Or Boring |
|---|---|---|---|
| System: | 3 Axis Milling DRO SDS 200 | Scale Model: | Linear Scale: KA-300 |
| For: | Linear Scale: TTL / RS422 | Resolution: | Linear Scale: 5um/1um |
| Voltage: | DRO Power AC 100V-240V | DRO Connect: | Three Linear Scales |
| High Light: | Milling Machine Digital Readout Kits,3 Axis Digital Readout Kits,LCD Milling Machine DRO Kits |
||
SINO 3 Axis Metal LCD Milling Machine DRO Kit SDS 200 With Three Linear Scales
The DRO package is special for 3 axis milling or boring machine.

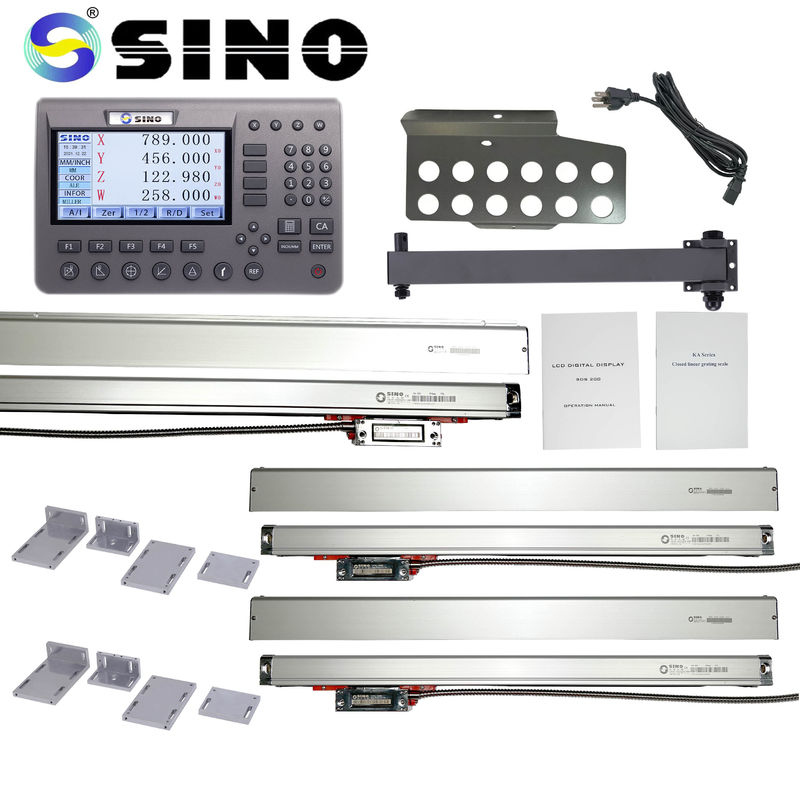

One metal LCD display DRO SDS200 with three standard linear scales KA-300.
Package list:
| Item name | 3 Axis Metal LCD Milling Machine DRO Kit |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis X | 670-1020mm |
| Linear scale for axis Y | 370-570mm |
| Linear scale for axis Z | 370-570mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type C |
| Protection cover for Y scale | Type D |
| Protection cover for Z scale | Type D |
| Bracket for scales | T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
