Product Details:
|
| Item Name: | 2 Axes TFT Lathe Digital Counter System | Usage: | 2 Axes Manual Lathe Machining |
|---|---|---|---|
| System: | 2 Axes TFT DRO SDS 200 | Scale Model: | Linear Scale: KA-300 Or KA-500 |
| Signal: | RS422/EIA-422-A Or TTL | Resolution: | 0.005mm/0.001mm Or Inch Mode |
| DRO Mounting: | Slide Box By 50C Rack For Lathe | Meas. Travel: | KA-300: 70-1020mm / KA-500: 70-570mm |
| Display: | Colorful TFT Display Screen | Voltage: | Linear Scale: +5V, Counter: 100V - 240V |
| High Light: | TFT Lathe Machine DRO,Metal Lathe Machine DRO,5V Metal Lathe Digital Readout |
||

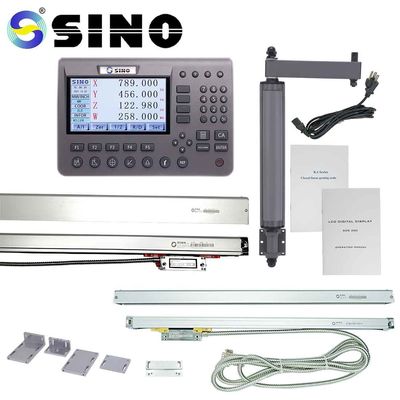

SINO 2 axes metal TFT lathe machine digital counter system SDS 200 mounting on slide box with two linear scales
This digital counter system is special for 2 axis lathe machining requirement.
The TFT DRO SDS 200 should be mounted on the lathe's slide box by 50C rack for lathe.
The KA-300 scale should be for axis Z, and KA-500 scale should be for axis X.
Package list:
| Item name | TFT lathe machine digital counter system |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis Z | KA-300 720-1020mm |
| Linear scale for axis X | KA-500 270-520mm |
| Rack for DRO | Rack for lathe (50C) |
| Protection cover for Z scale | Type D |
| Protection cover for X scale | Type H |
| Bracket for scales |
T-bracket (1set) / KA-500 bracket (1pc) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that a DRO is mounting on the slide box of a lathe:
It's a sample that KA-500 linear encoder on axis X of lathe:
It's a sample that KA-300 linear encoder on axis Z of lathe:
