Product Details:
|
| Item: | SINO Miniature High Precision Aluminium Glass Linear Encoder Scale | Model: | KA-500 520-870mm |
|---|---|---|---|
| Usage: | Woodworker, Metal Cutting Machine, Testing Equipment | Type: | Miniature Optical Grating Glass Linear Encoder |
| Resolution: | 0.5μm, 1μm, 5μm | Output Signal: | TTL / RS422 |
| System: | SINO Digital Readout | Keyword: | Miniature Linear Scale |
| High Light: | Aluminium Glass Linear Encoder,1μm Glass Linear Encoder,24V Absolute Linear Encoder |
||
SINO Miniature High Precision Aluminium Glass Linear Encoder Scale KA-500 520 to 870mm

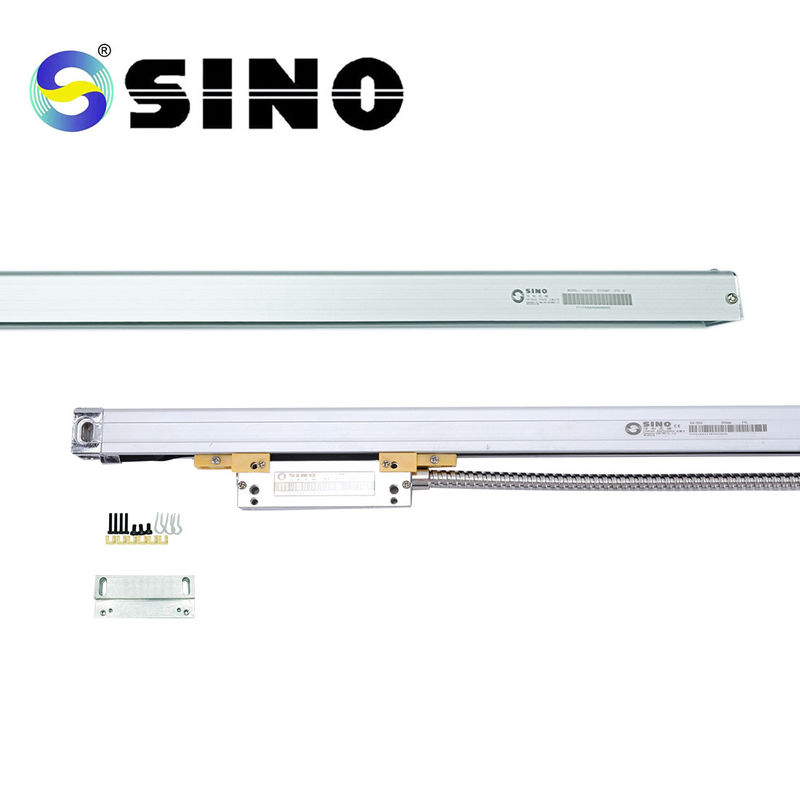

KA-500 Linear encoder is the miniature scale. The cross section of scale body is only 20*18mm. It's special for some narrow installation place or some special purpose measuring instruments. And the travel is 70-870mm, and it's possible to be longer if that's necessary.
Product data sheet
| Model | KA-500 |
| Travel length(mm) | 520-870 (50mm/Specification) |
| Scaling distance | 0.02mm(50 lines/mm) |
| Accuracy | ±3/±5/±15µm 20℃ |
| Resolution(um) | 0.5 um,1um,0.5um |
| Reference Signal | Every 50mm per length specification |
| Seal protection | IP53 |
| working speed | (resolution)>=5um: >=60m/min <=1um: >=120m/min |
| Output signal | TTL / RS422 |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃--80℃ |
| Humidity | 100% not condensed |
| Voltage | 5V/24V |
Package list: 1 * KA500 Linear encoder scale, 1 *screw sets
Protection Cover & KA-500 Bracket are not included. They can be optioned if it's necessary.
Product images
Covers' Options
All scales will be tested before delivery.
Each scale have its own test report:
It's a sample that KA-500 linear encoder on lathe:
Cover H to protect the scale:
