Product Details:
|
| Item Name: | 2 Axis Large Size Metal LCD Milling Machine Readout Kit | Usage: | Large Size Milling |
|---|---|---|---|
| System: | Large Size Milling Readout SDS 200 | Scale Model: | Linear Rulers: KA-600, KA-300 |
| Signal: | Linear Rulers: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | Two Axes Milling Machine DRO,LCD Milling Machine DRO,0.005mm DRO LCD |
||
SINO 2 Axis Large Size Metal LCD Milling Machine Readout Kit SDS 200 With Two Linear Rulers
The kit is special for 2 axis large size milling machine requirements.
One LCD display readout SDS200 with two standard linear rulers KA-600 or KA-300.
KA-600 linear ruler: 1000 - 3000mm
KA-300 linear ruler: 70 - 1020mm

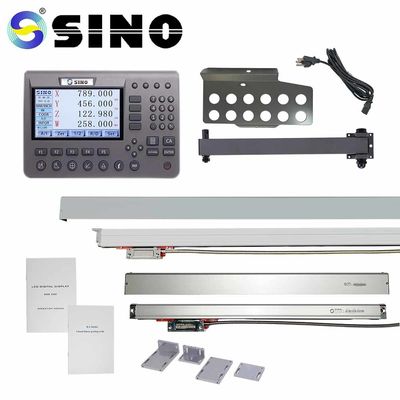

Package list:
| Item name | 2 axes large size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
