Product Details:
|
| Item Name: | 2 Axes Large Size Economy TFT Milling Machine Digital Display Unit | Usage: | Large Size Mill |
|---|---|---|---|
| System: | 2 Axes Large Size Mill Digital Display SDS2-3VA | Scale Model: | Grating Scale: KA-600, KA-300 |
| Signal: | Grating Scale: TTL / RS422 | Resolution: | Grating Scale: 0.005mm/0.001mm |
| Voltage: | Display: AC 100V-240V | Meas. Travel: | Grating Scale 1000-3000mm, 70-1020mm |
| High Light: | RoHS DRO Kits For Mills,2 Axes DRO Kits For Mills,0.001mm DRO For Bridgeport Mill |
||
SINO 2 Axis Large Size Economy TFT Milling Machine Digital Display Unit SDS2-3VA With Two Grating Scales
The unit is special for 2 axes large size mill requirements.
One Economy TFT digital display SDS2-3VA with two standard grating scales KA-600 or KA-300.
KA-600 grating scale: 1000 - 3000mm
KA-300 grating scale: 70 - 1020mm

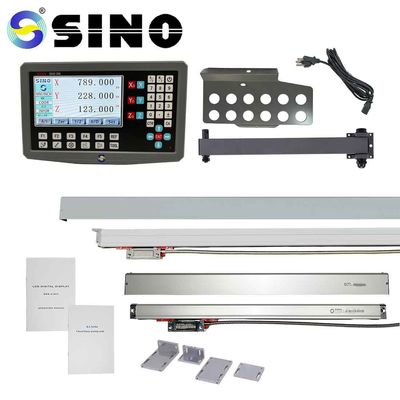

Package list:
| Item name | 2 axis large size Economy TFT milling machine DRO kit |
| Digital Readout (DRO) | SDS2-3VA |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
