Product Details:
|
| Item Name: | 2 Axes Large Size Economy Mill Readout Package | Usage: | Large Size Milling Installation |
|---|---|---|---|
| System: | 2 Axes Large Size Milling LED Readout SDS2MS | Scale Model: | Grating Rulers: KA-600, KA-300 |
| Signal: | Grating Rulers: TTL / RS422 | Resolution: | Grating Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Unit: AC 100V-240V | Meas. Travel: | Grating Rulers: 1000-3000mm, 70-1020mm |
| Highlight: | 2 Axes Milling Machine DRO,LED Milling Machine DRO,TTL Milling Machine DRO Kits |
||

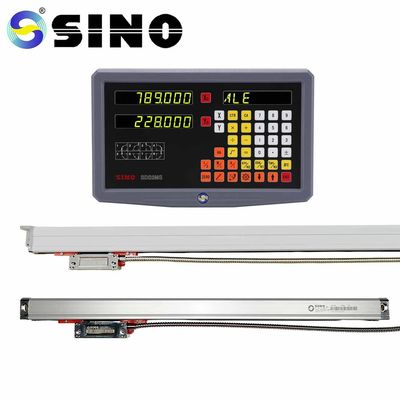

SINO 2 Axes Large Size Economy LED Milling Machine Readout Unit SDS2MS With Two Grating Rulers
The unit is special for 2 axes large size milling machine installations.
One 2-axis LED display Readout SDS2MS with two standard grating rulers KA-600 or KA-300.
KA-600 grating ruler: 1000 - 3000mm
KA-300 grating ruler: 70 - 1020mm
Package list:
| Item name | 2 axis large size economy LED milling machine readout unit |
| Digital Readout (DRO) | SDS2MS |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
