Product Details:
|
| Item Name: | 3 Axis Large Size Economy TFT Milling Machine Digital Counter Kit | Usage: | 3 Axis Large Size Mill Installation |
|---|---|---|---|
| System: | 3 Axis Large Size Digital Counter SDS2-3MS | Scale Model: | Linear Scale: KA-600, KA-300, KA-300 |
| Signal: | Linear Scale: TTL / EIA-422-A | Resolution: | Linear Scale: 0.005mm/0.001mm |
| Voltage: | Counter Input: AC 100V-240V | Meas. Travel: | Linear Scale: 1000-3000mm, 70-1020mm |
| High Light: | 100V Milling Machine DRO,240V Milling Machine DRO,3 Axes DRO Digital Readout |
||

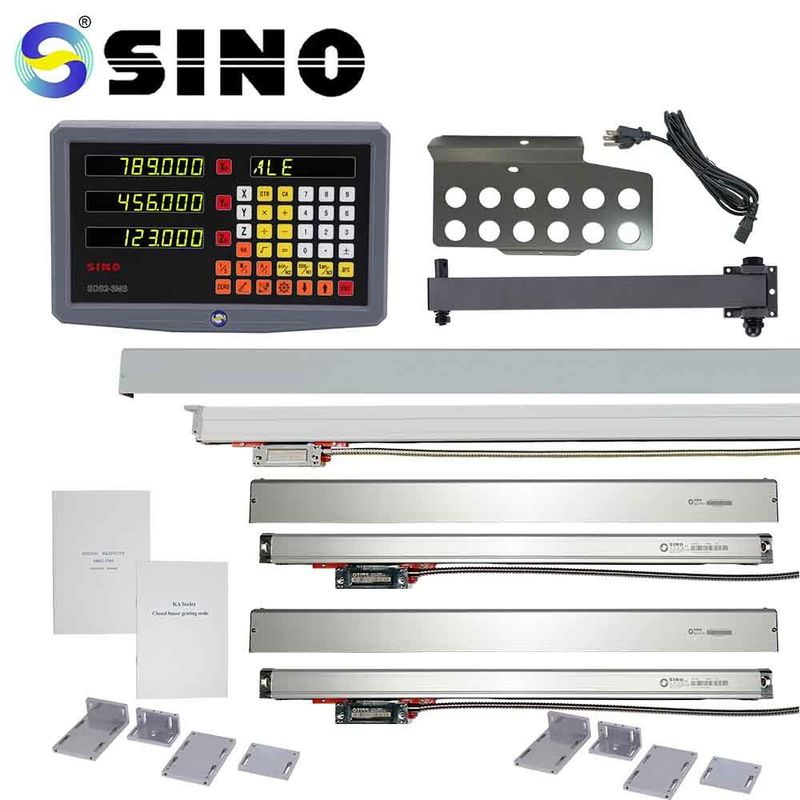

SINO 3 Axes Large Size Economy TFT Milling Machine Digital Counter Kit SDS2-3MS With Three Linear Scales
The digital counter kit is special for 3 Axes large size milling installations.
One 3-Axes TFT display digital counter SDS2-3MS with three standard linear scales KA-600 or KA-300.
KA-600 linear scale model: 1000 - 3000mm
KA-300 linear scale model: 70 - 1020mm
Package list:
| Item name | 3 Axes large size economy TFT milling machine digital counter kit |
| Digital Readout (DRO) | SDS2-3MS |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Linear scale for axis Z | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Protection cover for Z scale | Type D |
| Bracket for scales | T-bracket (2 or 3 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
