Product Details:
|
| Item Name: | 2 Axes TFT Large Lathe Digital Readout Unit | Usage: | 2 Axes Manual Large Lathe Machining |
|---|---|---|---|
| System: | 2 Axes TFT Digital Readout SDS 200 | Scale Model: | Encoder: KA-300, KA-500, KA-600 Series |
| Signal: | Encoder: Square Wave TTL / RS422 | Resolution: | 0.0002"/0.005mm/0.001mm |
| DRO Mounting: | Slide Part By The Rack For Lathe 50C | Meas. Travel: | Available Travel: 70-3000mm |
| Display: | TFT Digital Screen | Voltage: | TFT Digital Readout: 100V - 240V, Encoder: 5V |
| High Light: | Metal EDM Machine DRO,Large EDM Machine DRO,Two Axes Lathe DRO Kit |
||

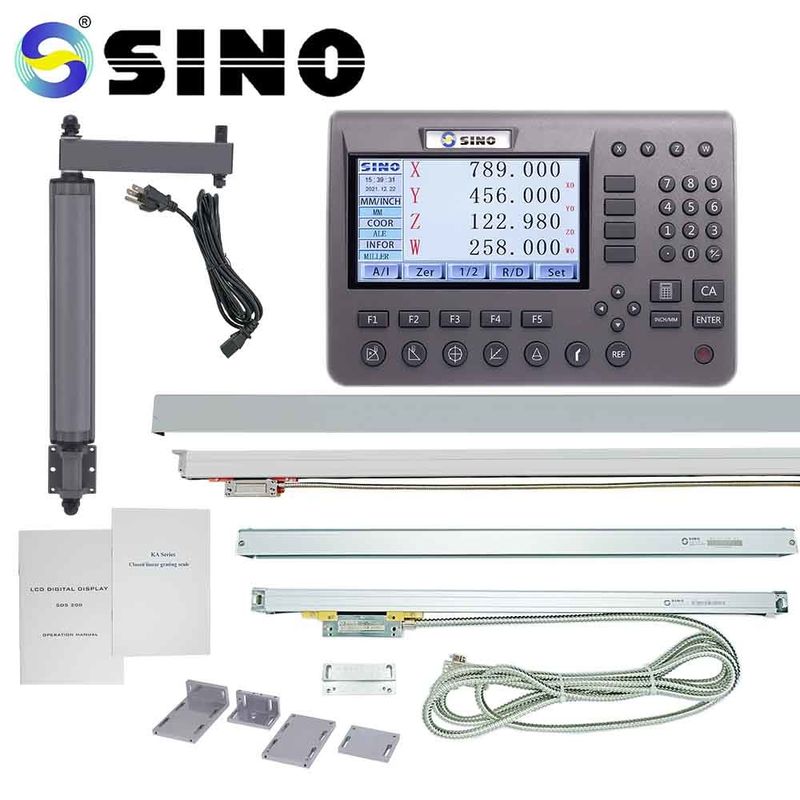

SINO 2 axes metal TFT large lathe digital readout unit SDS 200 mounting on slide box with two linear encoders
This digital readout unit is special for 2 axes large lathe machining.
The digital readout SDS 200 can be mounted on the lathe's slide part.
The KA-600 encoder should be for axis Z, and KA-300 or KA-500 encoder should be for axis X.
Package list:
| Item name | TFT large lathe digital readout unit |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis Z | KA-600 1000-3000mm |
| Linear scale for axis X | KA-300/KA-500 270-520mm |
| Rack for DRO | Rack for lathe (50C) |
| Protection cover for Z scale | Type M |
| Protection cover for X scale | Type D / H |
| Bracket for scales |
T-bracket (1set) / KA-500 bracket (1pc) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that a DRO is mounting on the slide box of a lathe:
It's a sample that KA-500 linear encoder on axis X of lathe:
It's a sample that KA-300 linear encoder on axis Z of lathe:
