Lathe Machine DRO
>
TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen
All Category

SINO Digital Readout System

Digital Readout Kits

3 Axis Digital Readout

CNC Vertical Machining Center

2 Axis Digital Readout

Single Axis Digital Readout

Glass Linear Encoder

Magnetic Linear Encoder

Milling Machine DRO

Lathe Machine DRO

EDM Machine DRO

Boring Machine DRO

Optical Angle Encoder

CNC Machine Accessories
Contact Us
Ms. Berlina
sino_trade@163.com
18620615002
Contact Now
TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen
  • name
  • name

TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen

Brand Name: SINO
Model Number: SDS5-4VA, KA-300, KA-500
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
2 Axes Metal TFT Lathe Machine DRO Package
Usage:
Two Axes Lathe Machine Positioning
System:
Two Axes TFT DRO SDS5-4VA
Scale Model:
KA-300 / KA-500 / KA-600
Signal:
Square Wave: TTL / RS422
Resolution:
0.005mm Or 0.001mm
DRO Mounting:
On Lathe's Electric Cabinet
Meas. Travel:
From 70mm To 1020mm
Display:
TFT Colorful Screen
Voltage:
Grating Ruler: 5V, DRO: 100V - 240V
Supply Ability:
3000 sets per month
Highlight:

TFT DRO Kits For Lathes

,

Two Axes DRO Kits For Lathes

,

Multipurpose Digital Readout Screen

Product Description

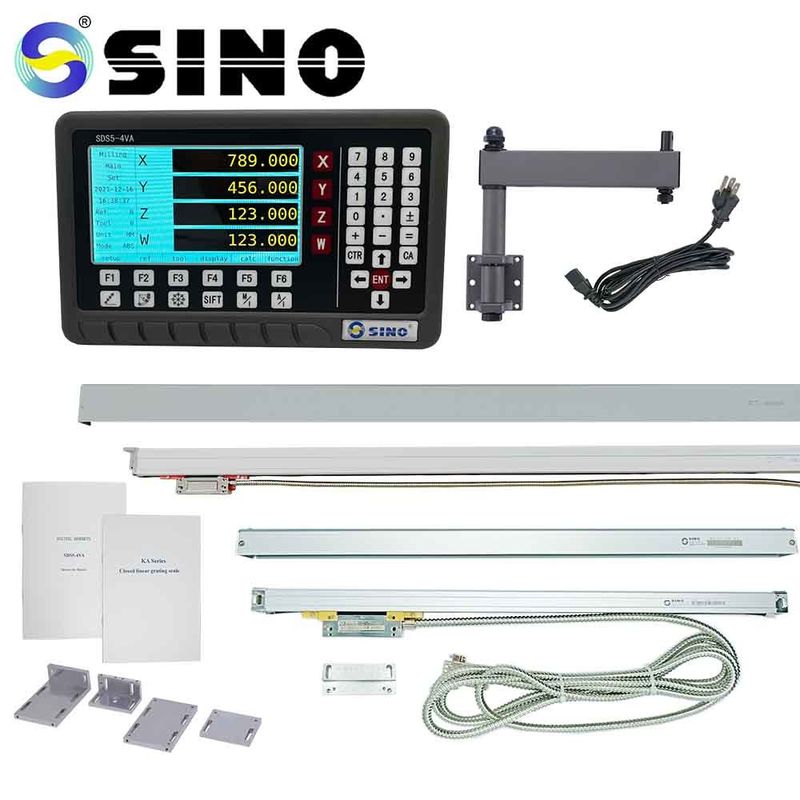

SINO 2 axes metal TFT large size lathe machine DRO package SDS5-4VA mounting on electric cabinet with two linear scales



The DRO package is special for two axes lathe machine positioning.



The SDS5-4VA should be mounting on the lathe's electirc cabinet.



The KA-600 grating ruler should be for axis Z, and KA-500 or KA-300 grating scale should be for axis X.



The standard cable of the grating rulers is 3M, sometimes extension cable is necessary for large size lathe's installation.

The length of extension cable is 1M to 10M, is the optioned accessory.

TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 0



Package list:



Item name TFT large size lathe machine DRO package
Digital Readout (DRO) SDS5-4VA
Linear scale for axis Z KA-600 1000-3000mm
Linear scale for axis X KA-300 / KA-500 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for X scale Type D / H
Bracket for scales

T-bracket (1set) / KA-500 bracket (1pc)
Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom

Detail Information:



TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 1

TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 2

TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 3TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 4

TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 5



Pin Description:

TFT Two Axes DRO Kits For Lathes , Multipurpose Digital Readout Screen 6



All linear scales were tested before delivery. Here is a sample of a scale's test report.
