Product Details:
|
| Item Name: | 2 Axes Economy LED Large Size Lathe Machine Digital Display Kit | Usage: | 2 Axes Large Lathe |
|---|---|---|---|
| System: | 2 Axes Economy LED DRO SDS2MS | Scale Model: | Linear Ruler: KA-300, KA-500, KA-600 |
| Signal: | Linear Ruler: EIA-422-A / TTL / RS422 | Resolution: | Linear Ruler: 0.5, 1, 5 Micron |
| DRO Mounting: | Electric Cabinet | Meas. Travel: | Linear Ruler: 70-3000mm |
| Display: | LED Display, 3 Axes | Voltage: | Ruler: 5V, Digital Display: 100V - 240V |
| High Light: | LED Lathe Machine DRO,Large Lathe Machine DRO,Two Axis DRO Measuring Systems |
||
SINO 2 axes economy LED lathe machine digital display kit SDS2MS mounting on electric box with two linear rulers
The digital display kit is special for 2 axes large lathe machine positioning.
The DRO SDS2MS should be mounting on the lathe's electirc cabinet.
The KA-600 linear ruler should be for axis Z, and KA-300 or KA-500 linear ruler should be for axis X.
The standard cable of the linear rulers is 3M, sometimes extension cable is necessary for large size lathe's installation.
The length of extension cable is 1M to 10M, is the optioned accessory.

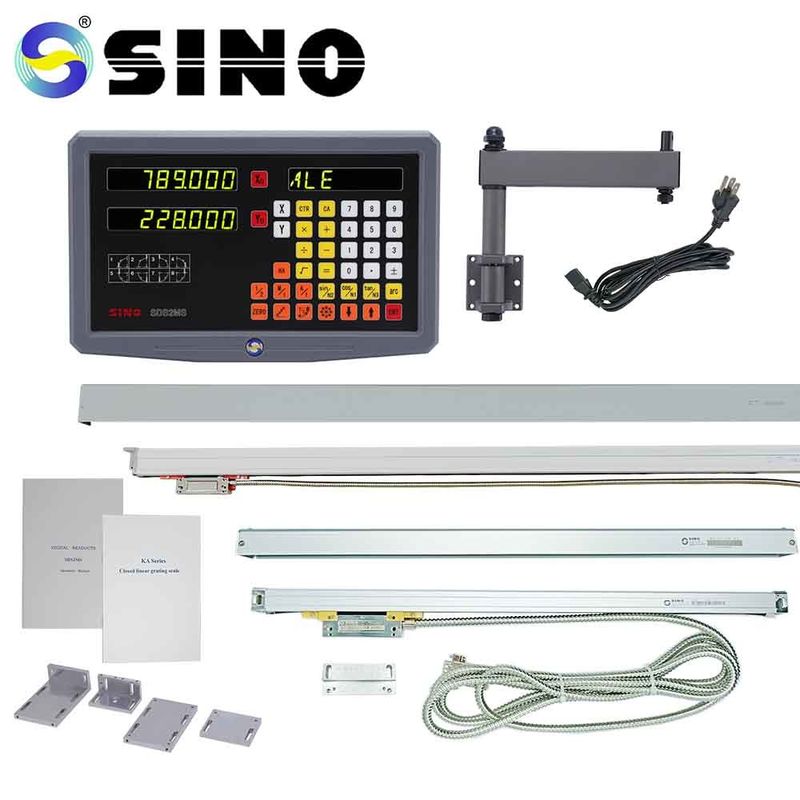

Package list:
| Item name | 2 axis economy large size lathe machine DRO kit |
| Digital Readout (DRO) | SDS2MS |
| Linear scale for axis Z | KA-600 1000-3000mm |
| Linear scale for axis X | KA-500 / KA-300 270-520mm |
| Rack for DRO | Rack for lathe |
| Protection cover for Z scale | Type M |
| Protection cover for X scale | Type H / D |
| Bracket for scales |
T-bracket (1set) / KA-500 bracket (1pc) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that a DRO is mounting on the electric box of a lathe:
It's a sample that KA-500 linear encoder on axis X of lathe:
It's a sample that KA-300 linear encoder on axis Z of lathe:
