Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers
  • name
  • name

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers

Brand Name: SINO
Model Number: SDS2-3VA, KA-300, KA-500, KA-600
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
2 Axes Economy TFT Large Size Lathe Machine DRO Set
Usage:
2 Axes Manual Lathe Set
System:
2 Axes TFT DRO SDS2-3VA
Scale Model:
KA-300/KA-500/KA-600 Grating Ruler
Signal:
Grating Ruler: RS422/EIA-422-A/TTL
Resolution:
Grating Ruler: 0.001mm/0.005mm
DRO Mounting:
Electric Box With Rack For Lathe
Meas. Travel:
Grating Ruler Travel: 70-3000mm
Display:
Color TFT Unit
Voltage:
Grating Ruler: 5V, DRO: 100-240V
Supply Ability:
3000 sets per month
Highlight:

Manual 2 Axis DRO Kit

,

TFT 2 Axis DRO Kit

,

Large 2 Axis DRO For Lathe

Product Description

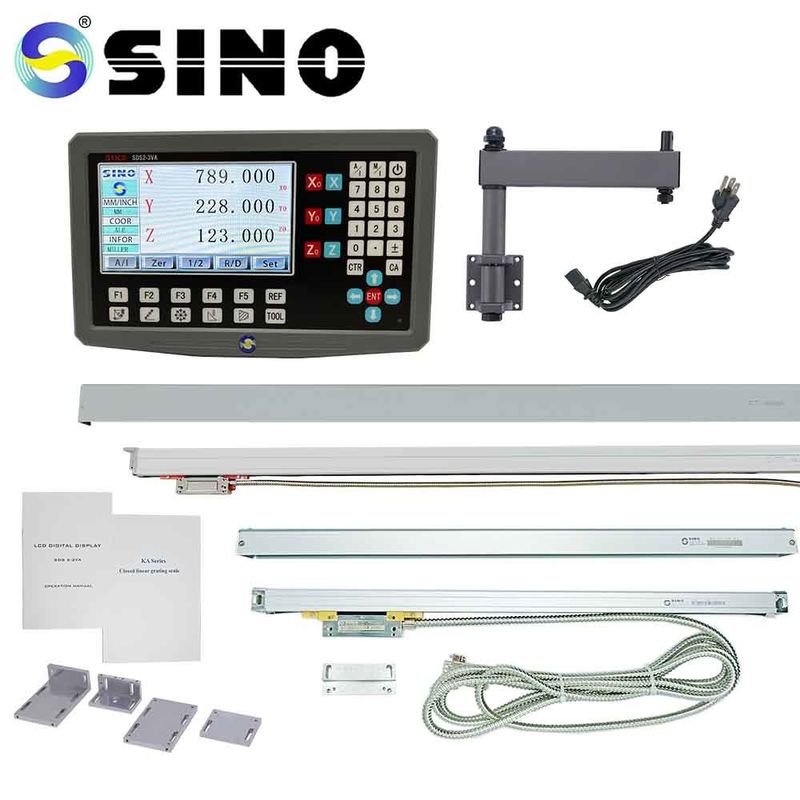

SINO 2 axes economy TFT large size lathe machine DRO kit SDS2-3VA mounting on electric box with two grating rulers



This DRO set is special for 2 axes lathe machine positioning.

The TFT DRO SDS2-3VA should be mounting on the lathe's electirc box.

The KA-600 grating ruler should be for axis Z, and KA-300 or KA-500 grating ruler should be for axis X.



The standard cable of the grating rulers is 3M, sometimes extension cable is necessary for large size lathe's installation.

The length of extension cable is 1M to 10M, is the optioned accessory.





Package list:



Item name 2 axes TFT large size lathe machine DRO set
Digital Readout (DRO) SDS2-3VA
Linear scale for axis Z KA-600 1000-3000mm
Linear scale for axis X KA-500 / KA-300 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for X scale Type H / D
Bracket for scales

T-bracket (1set) / KA-500 bracket (1pc)
Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom

Detail Information:



Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 0

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 1

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 2

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 3Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 4

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 5



Pin Description:

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 6



All linear scales were tested before delivery. Here is a sample of a scale's test report.

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 7

It's a sample that a DRO is mounting on the electric box of a lathe:

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 8

It's a sample that KA-500 linear encoder on axis X of lathe:

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 9

It's a sample that KA-300 linear encoder on axis Z of lathe:

Manual TFT Large 2 Axis DRO Kit For Lathe 3M Grating Rulers 10
