Product Details:
|
| Item Name: | 3 Axes Economy LED Lathe Machine DRO Kit | Usage: | 3 Axes Manual Lathe Requirement |
|---|---|---|---|
| System: | 3 Axes LED DRO SDS2-3MS | Scale Model: | KA-600/KA-500/KA-300 Series |
| Signal: | TTL Or RS422/EIA-422-A | Resolution: | 0.005mm, 0.001mm Or 0.0005mm |
| DRO Mounting: | On The Electric Box With Rack | Meas. Travel: | Linear Glass Scale: 70-3000mm |
| Display: | 3 Lines Of 7 Digits LED | Voltage: | Glass Scale: 5V / DRO: 100V - 240V |
| High Light: | TTL 3 Axis Digital Readout,Mill 3 Axis Digital Readout,0.005mm 3 Axis DRO For Bridgeport Mill |
||

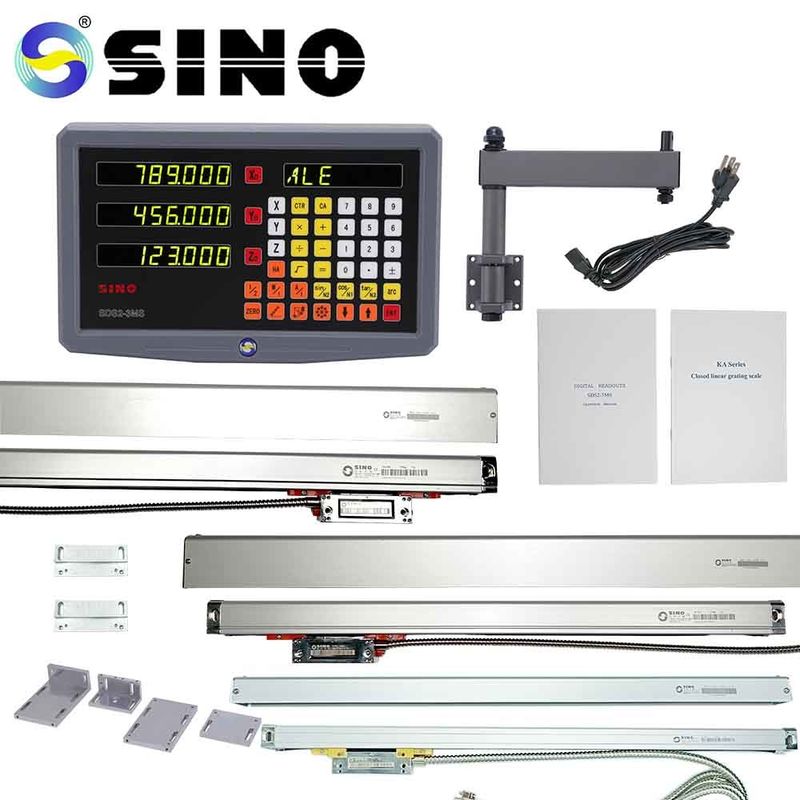

SINO 3 axes economy LED lathe machine DRO kit SDS2-3MS mounting on electric box with three linear glass scales
The economy DRO kit is for 3 axes lathe propose.
The LED DRO SDS2-3MS is mounting on the lathe's electirc box.
The KA-600 linear glass scale should be for axis Z, and KA-300 or KA-500 linear glass scale should be for axis X and Z1.
The standard cable of the linear glass scales is 3M, sometimes extension cable is necessary for large size lathe's installation.
The length of extension cable is 1M to 10M, is the optioned accessory.
Package list:
| Item name | 3 axes economy LED lathe machine DRO kit |
| Digital Readout (DRO) | SDS2-3MS |
| Linear scale for axis Z | KA-300 / KA-600 820-3000mm |
| Linear scale for axis Z1 | KA-500 / KA-300 270-520mm |
| Linear scale for axis X | KA-500 / KA-300 270-520mm |
| Rack for DRO | Rack for lathe |
| Protection cover for Z scale | Type M |
| Protection cover for Z1 scale | Type H / D |
| Protection cover for X scale | Type H / D |
| Bracket for scales |
T-bracket (1set) / KA-500 bracket (2 pcs) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that a DRO is mounting on the electric box of a lathe:
It's a sample that KA-500 linear encoder on axis X of lathe:
It's a sample that KA-300 linear encoder on axis Z of lathe:
