LED CE 3 Axis Digital Readout DRO Kit Multipurpose For Lathe

Description
Item Name: 3 Axes RS-232-C Lathe Machine DRO Kit Usage: 3 Axes Lathe Machine Positioning With PC Connection Propose
System: 3 Axes DRO SDS6-3VF (RS-232-C) Scale Model: KA-600, KA-500, KA-300 Series
Signal: RS422 / EIA-422-A / TTL Resolution: 0.5µm/1µm/5µm
DRO Mounting: On The Electric Box Meas. Travel: Available: 70-3000mm
Display: 3 Lines Green LED Voltage: DRO: 100V - 240V; Scale: 5V
High Light:

LED 3 Axis Digital Readout

,

CE 3 Axis Digital Readout

,

Multipurpose Lathe DRO Kit

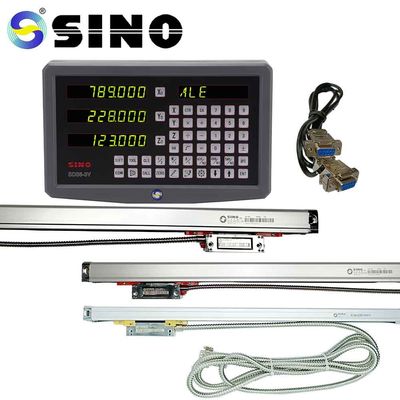

SINO 3 axes metal LED lathe machine DRO kit RS232-C SDS6-3VF mounting on electric box three linear scales



This DRO kit is for 3 axes lathe with RS-232-C output propose.



The LED DRO SDS6-3VF should be mounting on the lathe's electirc box.



The KA-600 linear scale should be for axis Z, and KA-300 or KA-500 linear scales should be for axis X and Z1.



The standard cable of the linear scales is 3M, sometimes extension cables are necessary for large size lathe's installation.

The length of extension cable is 1M to 10M, is the optioned accessory.



LED CE 3 Axis Digital Readout DRO Kit Multipurpose For Lathe 0



Package list:



Item name 3 axes RS-232-C metal lathe machine DRO kit
Digital Readout (DRO) SDS6-3VF
Linear scale for axis Z KA-300 / KA-600 820-3000mm
Linear scale for axis Z1 KA-500 / KA-300 270-520mm
Linear scale for axis X KA-500 / KA-300 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for Z1 scale Type H / D
Protection cover for X scale Type H / D
Bracket for scales

T-bracket (1set) / KA-500 bracket (2 pcs)

Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom

Detail Information:
