Item Name: 3 Axes TFT Lathe Machine Digital Display Unit Usage: 3 Axes Manual Lathe Machine Positioning
System: 3 Axes DRO SDS 200 Scale Model: KA-300, KA-500, KA-600
Signal: EIA-422-A / TTL / RS422 Resolution: 0.0005mm Or 0.005mm Or 0.001mm
DRO Mounting: Electric Box Meas. Travel: Linear Ruler: 70-3000mm
Display: TFT Display Unit Voltage: Display Unit: 100V - 240V
High Light:

Multilingual Mill DRO 3 Axis

,

RoHS Mill DRO 3 Axis

,

EIA-422-A SINO 3 Axis DRO

SINO 3 Axes Metal TFT Lathe Machine Digital Display Unit SDS 200 Mounting On Electric Box Three Linear Rulers



This digital display unit is for 3 axes manual lathe machine positioning.

The SDS 200 should be on the lathe's electirc box.

The KA-600 ruler should be for axis Z, and KA-300 or KA-500 rulers should be for axis X and Z1.



The standard cable of the scales is 3 meter, sometimes extension cable is necessary for large size lathe's installation.

The length of extension cable is 1 meter to 10 meter, is the optioned accessories.

SINO RoHS Mill DRO 3 Axis Multilingual EIA-422-A Signal Durable 0



Package list:

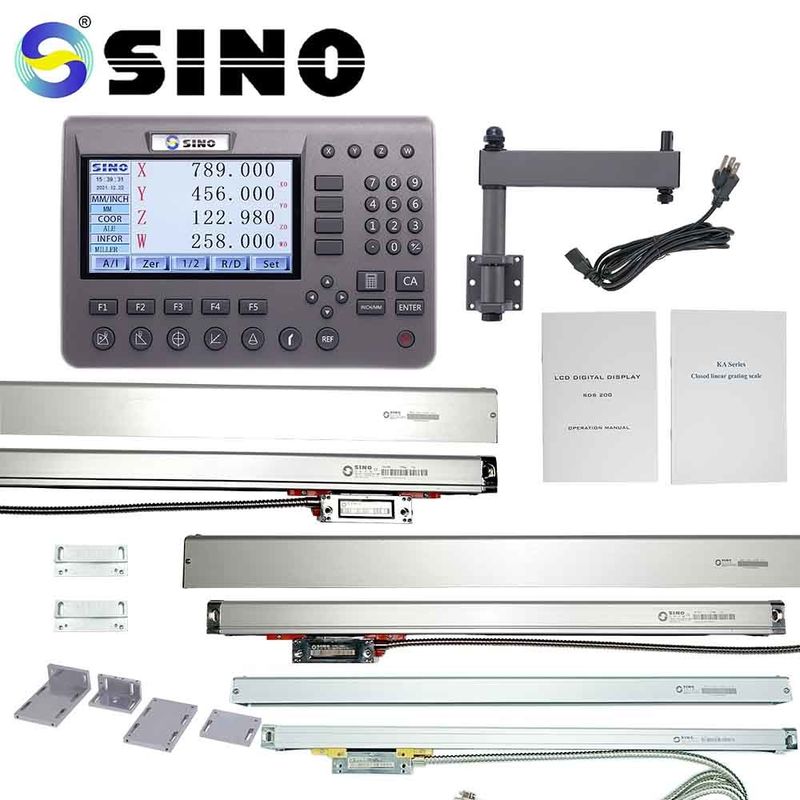

Item name 3 axis metal TFT display lathe machine DRO kit
Digital Readout (DRO) SDS 200
Linear scale for axis Z KA-300 / KA-600 820-3000mm
Linear scale for axis Z1 KA-500 / KA-300 270-520mm
Linear scale for axis X KA-500 / KA-300 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for Z1 scale Type H / D
Protection cover for X scale Type H / D
Bracket for scales

T-bracket (1set) / KA-500 bracket (2 pcs)

Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom
