3 Axis Digital Readout
>
70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System
All Category

SINO Digital Readout System

Digital Readout Kits

3 Axis Digital Readout

CNC Vertical Machining Center

2 Axis Digital Readout

Single Axis Digital Readout

Glass Linear Encoder

Magnetic Linear Encoder

Milling Machine DRO

Lathe Machine DRO

EDM Machine DRO

Boring Machine DRO

Optical Angle Encoder

CNC Machine Accessories
Contact Us
Ms. Berlina
sino_trade@163.com
18620615002
Contact Now
70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System
  • name
  • name

70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System

Brand Name: SINO
Model Number: SDS 200, KA-300, KA-500, KA-600
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
3 Axes TFT Lathe Machine Digital Display Package
Usage:
3 Axes Lathe Machining
System:
3 Axes TFT DRO SDS 200
Scale Model:
KA-600, KA-300, KA-500 Series
Signal:
Linear Ruler: TTL / RS422
Resolution:
5µm/1µm
DRO Mounting:
Back Side Of The Slide Box
Meas. Travel:
Linear Ruler: 70-3000mm
Display:
Colorful TFT Unit
Voltage:
Digital Display Unit: 100V - 240V
Supply Ability:
3000 sets per month
Highlight:

70mm 3 Axis Magnetic DRO Kit

,

3000mm 3 Axis Magnetic DRO Kit

,

Digital Read Out System

Product Description

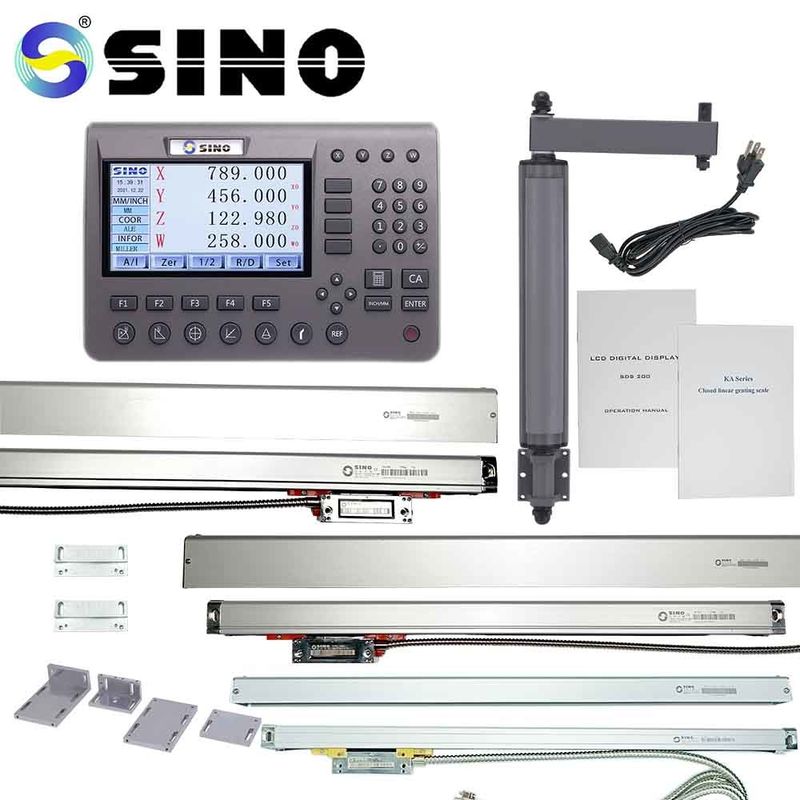

SINO 3 axes TFT lathe machine digital display package SDS 200 mounting on slide box three linear rulers​



This digital display package is special for 3 axes lathe machine positioning.



DRO SDS 200 is a colorful TFT digital display that should be mounting on the back side of the lathe's slide box.



The KA-600 ruler should be for axis Z, and KA-300 or KA-500 ruler should be for axis X and Z1.



Package list:



Item name 3 axes TFT lathe machine digital display package
Digital Readout (DRO) SDS 200
Linear scale for axis Z KA-300 / KA-600 820-3000mm
Linear scale for axis Z1 KA-300 / KA-500 270-520mm
Linear scale for axis X KA-300 / KA-500 270-520mm
Rack for DRO Rack for lathe (50C)
Protection cover for Z scale Type D / M
Protection cover for Z1 scale Type D / H
Protection cover for X scale Type D / H
Bracket for scales

T-bracket (1 set) / KA-500 bracket (2 pcs)
Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom

Detail Information:



70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 0

70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 1

70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 2



70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 370-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 4

70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 5



Pin Description:

70-3000mm Ruler 3 Axis Magnetic DRO Kit , TFT Digital Read Out System 6



All linear scales were tested before delivery. Here is a sample of a scale's test report.
