Product Details:
|
| Item Name: | 2 Axes Economy TFT Mini Size Lathe Machine Readout Package | Usage: | 2 Axes Econmony TFT Mini Lathe Positioning |
|---|---|---|---|
| System: | 2 Axes TFT DRO SDS2-3VA | Scale Model: | KA-200/KA-300/KA-500 Series |
| Signal: | Glass Scale Connection: TTL / RS422 | Resolution: | 0.005/0.001/0.0005mm |
| DRO Mounting: | On The Electric Box Unit | Meas. Travel: | Glass Scale Travel: 70-1020mm |
| Display: | 3 Axes TFT Display | Voltage: | Display Input Power: 100V - 240V |
| High Light: | 100V Digital Read Out System,240V Digital Read Out System,Multifunctional Digital Read Out For Lathe |
||

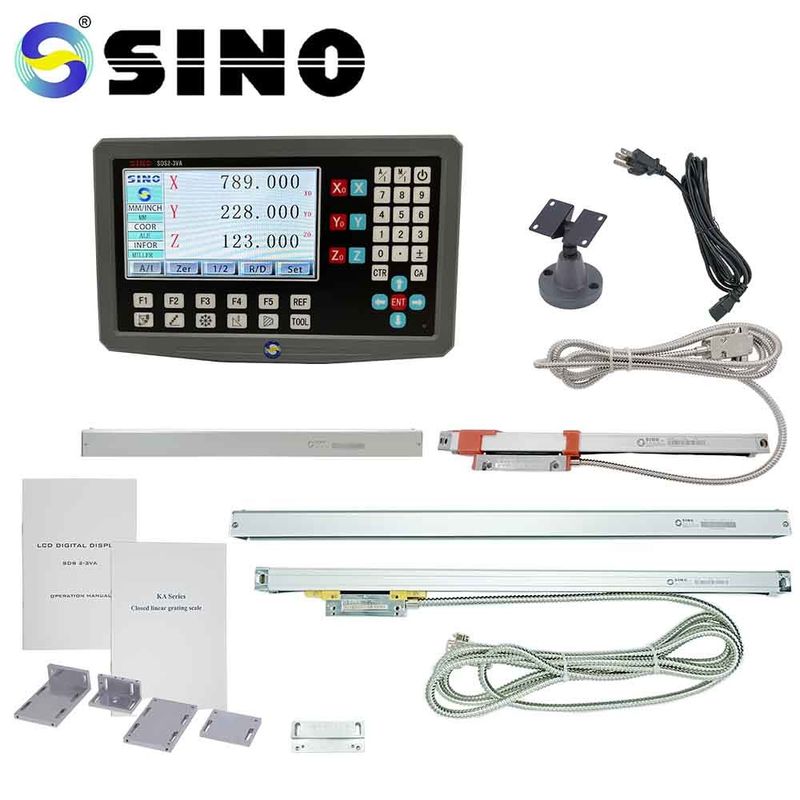

SINO 2 axes economy TFT mini lathe machine readout package SDS2-3VA with two mini linear glass scales
The readout package is special for mini lathe machining.
The TFT readout SDS2-3VA should be mounting on the electric box unit by a special base.
Two super mini glass sales KA-500 or KA-200 are good for small installation place requirement.
Package list:
| Item name | 2 axes TFT mini lathe machine readout package |
| Digital Readout (DRO) | SDS2-3VA |
| Linear scale for axis Z | KA-200 / KA-500 70-570mm |
| Linear scale for axis X | KA-200 / KA-500 70-570mm |
| Rack for DRO | Base for lathe |
| Protection cover for Z scale | Type H / Y |
| Protection cover for X scale | Type H / Y |
| Bracket for scales |
T-bracket (1 set) / KA-500 bracket (1 pc) |
| Others | Cable / Screws / Manual |
