Product Details:
|
| Item Name: | 2 Axis Economy Mini Size Lathe Machine DRO Kit | Usage: | Mini Lathe Machine Positioning |
|---|---|---|---|
| System: | 2 Axis LED DRO SDS2-3VA | Scale Model: | KA-200, KA-300, KA-500, |
| Signal: | TTL / RS422 | Resolution: | 0.005mm/0.001mm |
| DRO Mounting: | Electric Box By Base | Meas. Travel: | 70-1020mm |
| Display: | 2 Axes LED | Voltage: | 100V - 240V |
| High Light: | SINO Lathe Machine DRO,Two Axis Lathe Machine DRO,240V DRO Lathe Machine |
||
SINO 2 axis LED mini lathe machine DRO kit SDS2MS with two mini linear scales
The package is special for 2 axis mini lathe machine positioning.
The TFT DRO SDS2MS should be mounting on the electric box by a special base.
Two super mini sales KA-500 or KA-200 are good for small installation place requirement.

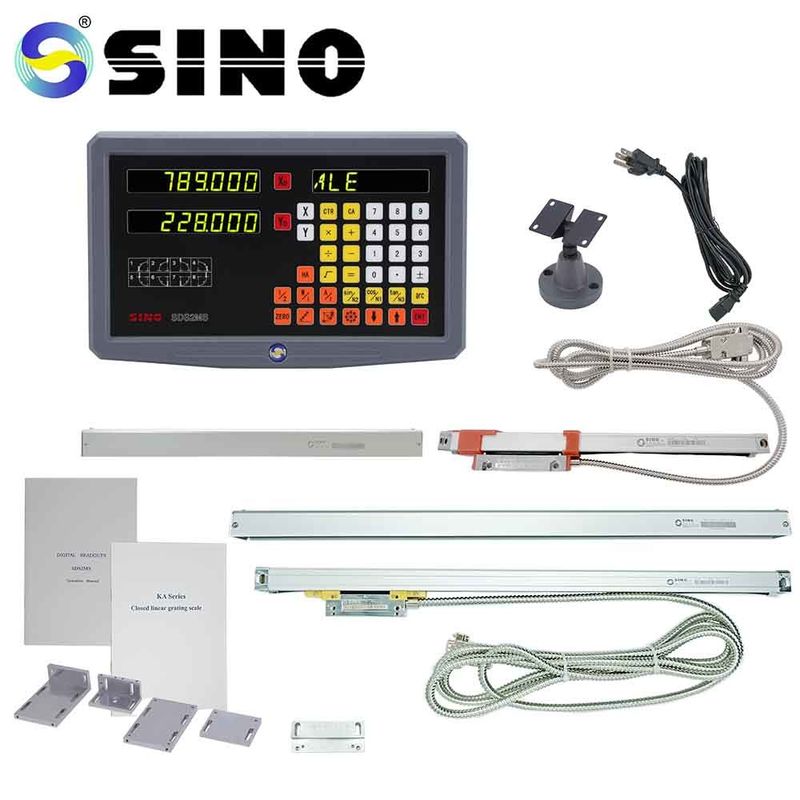

Package list:
| Item name | 2 axis economy mini lathe machine DRO kit |
| Digital Readout (DRO) | SDS2MS |
| Linear scale for axis Z | KA-200 / KA-500 70-570mm |
| Linear scale for axis X | KA-200 / KA-500 70-570mm |
| Rack for DRO | Base for lathe |
| Protection cover for Z scale | Type H / Y |
| Protection cover for X scale | Type H / Y |
| Bracket for scales |
T-bracket (1 set) / KA-500 bracket (1 pc) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that KA-500 linear encoder on axis X of lathe:
