Product Details:
|
Item Name: | 2 Axis Metal Mini Size Lathe Machine DRO Kit RS232-C Output | Usage: | Mini Lathe Machine Positioning & RS-232-C Output |
---|---|---|---|
System: | 2 Axis Metal DRO SDS6-2VF For Mini Lathe | Scale Model: | KA-200, KA-300, KA-500, |
Signal: | DRO: TTL / RS422 | Resolution: | 0.005mm/0.001mm |
DRO Mounting: | On The Electric Box By A Base | Meas. Travel: | Available Travel: 70-1020mm |
Display: | Green LED Display | Voltage: | DRO Power 100V - 240V |
Highlight: | LED DRO Digital Readout Kit,240V DRO Digital Readout Kit,0.001mm Linear Scale DRO System |
SINO 2 axis metal mini lathe machine DRO kit SDS6-2VF with RS-232-C output function with two mini linear scales
The DRO kit have RS-232-C output connection, and it is special for 2 axis mini lathe machine positioning.
The LED DRO SDS6-2VF can be mounting on the electric box by a special base.
Two super mini sales KA-500 or KA-200 are good for small installation place requirement.

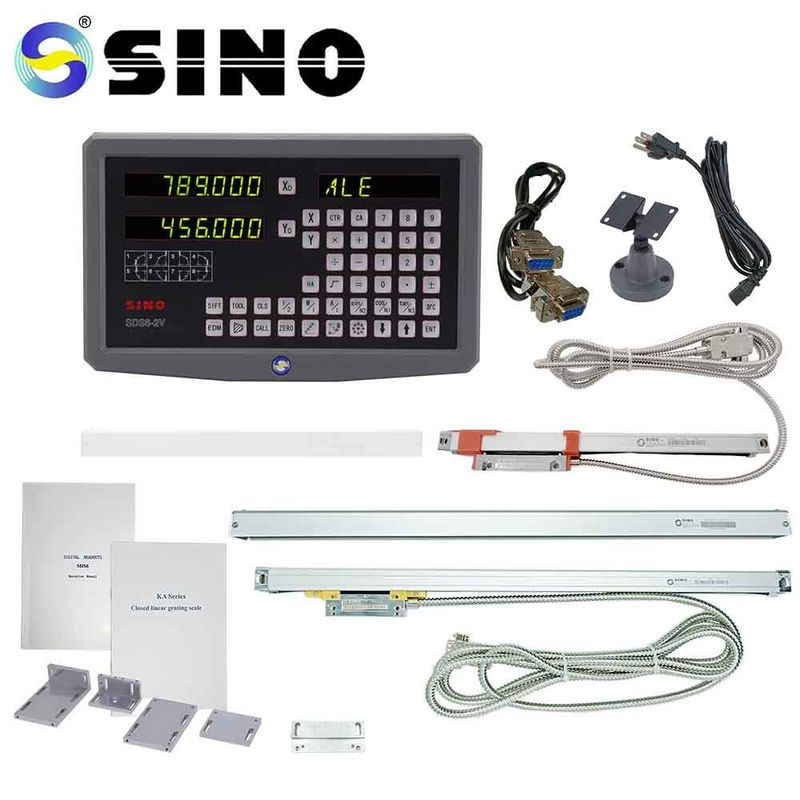

Package list:
Item name | 2 axis mini lathe machine DRO kit RS-232-C |
Digital Readout (DRO) | SDS6-2VF |
Linear scale for axis Z | KA-200 / KA-500 70-570mm |
Linear scale for axis X | KA-200 / KA-500 70-570mm |
Rack for DRO | Base for lathe |
Protection cover for Z scale | Type H / Y |
Protection cover for X scale | Type H / Y |
Bracket for scales |
T-bracket (1 set) / KA-500 bracket (1 pc) |
Others | Cable / Screws / Manual |
