AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material

Brand Name: SINO
Model Number: SDS5-4VA, KA-300
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
Metal TFT LCD Grinding Machine DRO Unit
Usage:
Grinder Machine
System:
DRO SDS5-4VA
Scale Model:
KA-300 Encoder
Material:
Aluminum + Glass
Encoder Type:
Closed Linear Grating Encoder
Voltage:
AC 100V-240V
Measyrubg Travel:
70mm To 1020mm
Supply Ability:
3000 sets per month
Highlight:

100V 2 Axis Digital Readout

,

240V 2 Axis Digital Readout

,

Aluminum 2 Axis DRO System

Product Description

SINO 2 Axis Metal TFT LCD Grinding Machine DRO Kit SDS5-4VA with Two High Precision 1 micron Linear Scales



The package is special for 2 axis grinding machine requirement.

One metal 4-axis TFT LCD display DRO SDS5-4VA with two high precision 1 micrion linear scales KA-300.

Usually, the resolution should be 1 micron for grinding machine.

And the 1 micron scales use yellow lips that more smoothly to upgrade the accuracy.

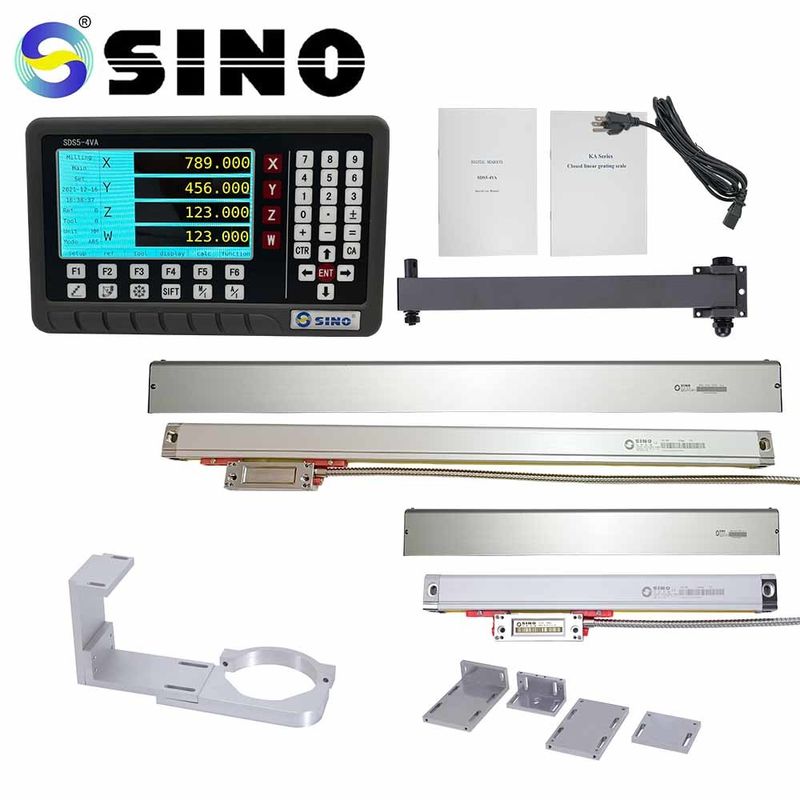

Package list:



Item name Metal TFT Grinding Machine DRO kit
Digital Readout (DRO) SDS5-4VA
Linear scale for axis X KA-300: 70-1020mm
Linear scale for axis Y KA-300: 70-1020mm
Rack for DRO L400
Protection cover for X scale Type D
Protection cover for Y scale Type D
Bracket for scales T-bracket (1 set)
Others Cable / Screws / Manual
Bracket for Grinding 1 set (optioned, not standard)



Functions for grinding machine:

  1. Digital Filter Function

Bracket for Grinding:

AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 0

Special for the cylinder type grinding header, so that's not standard accessory.







Detail Information:



AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 1

AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 2

AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 3

AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 4



Pin Description:

AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 5



All linear scales were tested before delivery. Here is a sample of a scale's test report.

AC 100V-240V 2 Axis Digital Readout DRO System Aluminum Glass Material 6
