Product Details:
|
| Item Name: | Metal Single Axis Grinding Machine DRO Kit | Usage: | Single Axis Grinding Machine Positioning |
|---|---|---|---|
| System: | DRO Single Axis | Scale Model: | KA-300 / KA-600 Encoder |
| Precision: | High Precision | Resolution: | 1µm Resolution |
| Digital Filter: | Yes | Additional Function: | Cleaning Key |
| High Light: | RoHS Single Axis Digital Readout,Multilingual Single Axis Digital Readout,Grinding Machine Single Axis DRO |
||
SINO Single Axis Metal LED Grinding Machine DRO Kit SDS3-1 with One High Precision 0.001mm Linear Scale
The package is special for 1 axis grinding machine requirement.
One Metal Single axis DRO SDS3-1 with one high precision 0.001mm linear scale KA-300 or KA-600.
Usually, the resolution should be 1µm for grinding machine.
And the 1µm scales use yellow lips that more smoothly to upgrade the accuracy.

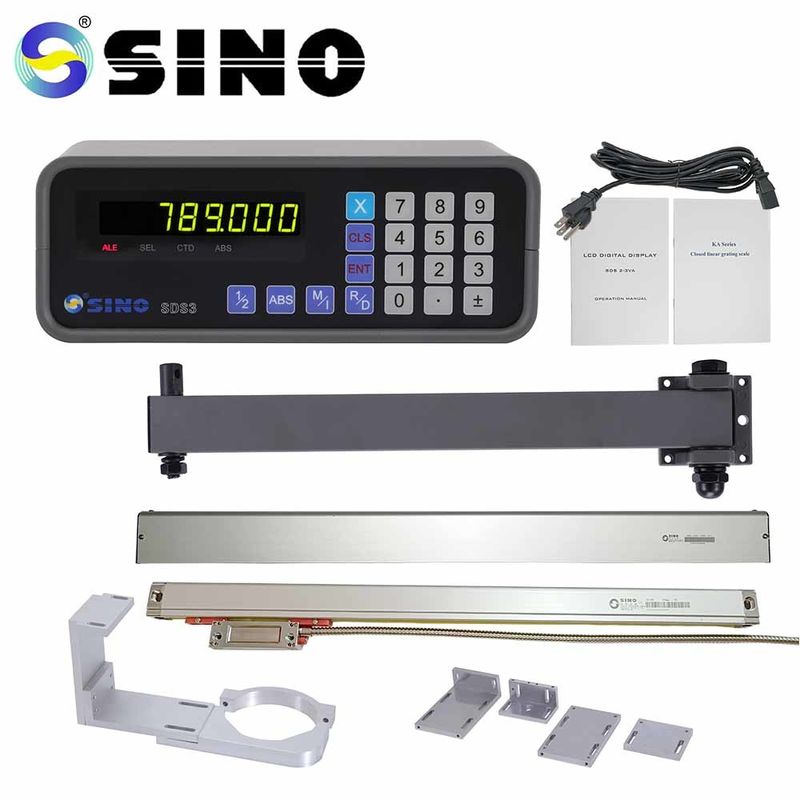

Package list:
| Item name | Metal Single Axis Grinding Machine DRO kit |
| Digital Readout (DRO) | SDS3-1 |
| Linear scale |
KA-300: 70-1020mm / KA-600: 1000-3000mm |
| Rack for DRO | L400 |
| Protection cover | Type D / M |
| Bracket for scales | T-bracket (1 set) |
| Others | Cable / Screws / Manual |
| Bracket for Grinding | 1 set (optioned, not standard) |
Functions for grinding machine:
Bracket for Grinding:
Special for the cylinder type grinding header, so that's not standard accessory.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
