Product Details:
|
| Item Name: | Single Axis Metal EDM Machine Digital Readout Kit | Usage: | Single Axis EDM Machine Positioning |
|---|---|---|---|
| System: | Single Axis DRO SDS3-1E | Scale Model: | KA-300 Or KA-500 Encoder |
| Precision: | High Precision Encoder | Resolution: | 5µm |
| Special Function: | Matching Output | Diplay: | Single Axis 7 Digits Green LED |
| High Light: | RoHS EDM Machine DRO,Single Axis EDM Machine DRO,LED Single Axis DRO |
||

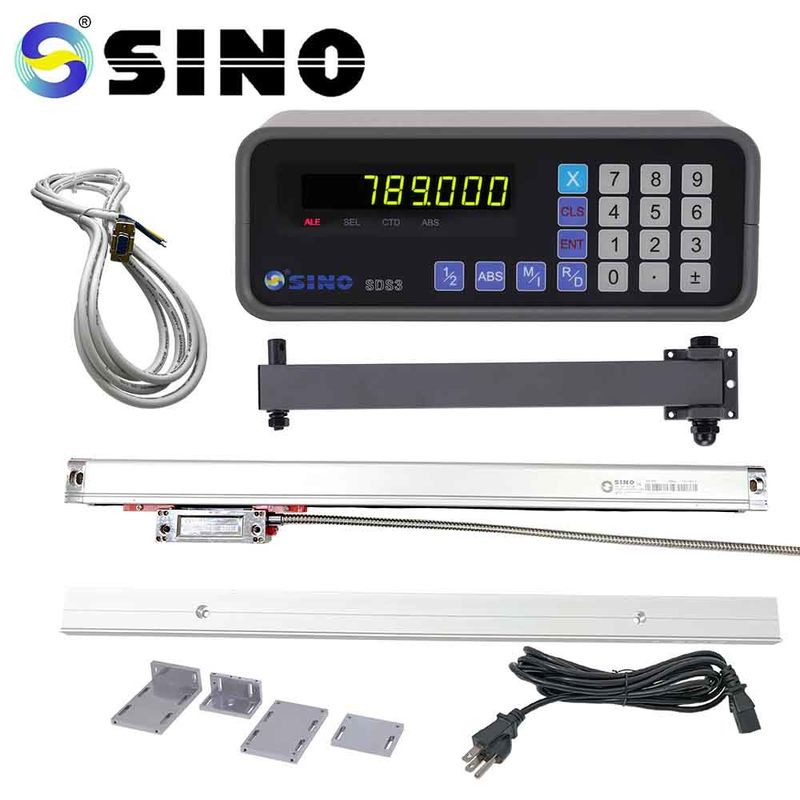

SINO Single Axis Metal LED EDM Machine Digital Readout Kit SDS3-1E with One Linear Encoder
This digital readout kit is special for one axis EMD machine positioning.
One pc of metal LED single axis DRO SDS3-1E with one pc of 5 micron linear scale KA-300 or KA-500.
Package list:
| Item name | Metal LED Single Axis EDM Machine Digital Readout KIt |
| Digital Readout (DRO) | SDS3-1E |
| Linear scale / encoder | KA-300/KA-500: 70-1020mm |
| Rack for DRO | L400 |
| Protection cover | Type D / H / panel |
| Bracket for scales | T-bracket (1 set) |
| Others | Cable / Screws / Manual |
| Bracket for EDM | 1 set (optioned, not standard) |
Functions for grinding machine:
Bracket for Grinding:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
