Product Details:
|
| Item Name: | Two Axes RS-232-C Metal LED Boring Machine DRO Kit | Usage: | Two Axes Boring Machine Positioning & RS232-C Output |
|---|---|---|---|
| System: | Two Axes LED DRO SDS6-2VF | Scale Model: | KA Serie: KA-300, KA-600 |
| Signal: | KA Serie: TTL / RS422 Square Wave | Resolution: | 5 /1 /0.5 Micron |
| Standard Cable: | 3M | Meas. Travel: | KA-300: 70~1020mm / KA-600: 1000-3000mm |
| Display: | Two Seven Digits LED | Voltage: | 100V - 240V For DRO & +5V For Scales |
| High Light: | Two Axes Boring Machine DRO,Metal Boring Machine DRO,LED DRO Digital Readout |
||

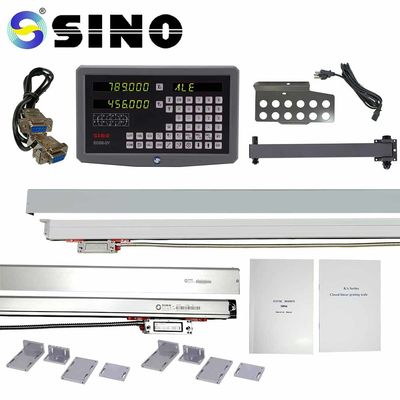

SINO two axes metal LED boring machine DRO kit RS232-C SDS6-2VF with two linear scales
This DRO kit is special for two axes boring positioning with RS-232-C output connection.
There is one RS-232-C output DRO SDS6-2VF and two KA-series scales. For big machine, usually KA-300 or KA-600 model.
And the standard cable of the scales is 3 meters, sometimes extension cables are necessary for the big machine.
The length of extension cable should be 1 to 10 meters.
Package list:
| Item name | Two axes LED RS-232-C boring machine DRO kit |
| Digital Readout (DRO) | SDS6-2VF |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Bracket for scales |
T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
