TTL RS422 Digital Readout System , Square Wave 2 Axis DRO Kit

Description
Item Name: Two Axes Economy LED Boring Machine Digital Readout System Usage: Two Axes Boring Machine Propose
System: Two Axis LED DRO SDS2MS Scale Model: Grating Scale: KA-600 Or KA-300
Signal: Scale Output: Square Wave TTL Or RS422 Resolution: 5µm/1µm/0.5µm Can Be Optioned
Standard Cable: 3000mm Meas. Travel: KA-600: 1000~3000mm / KA-300: 70~1020mm
Display: Two Units Of 7 Green Digits LED Voltage: 100-240V For Digital Readout & 5V For Scales
High Light:

TTL Digital Readout System

,

RS422 Digital Readout System

,

Square Wave 2 Axis DRO Kit

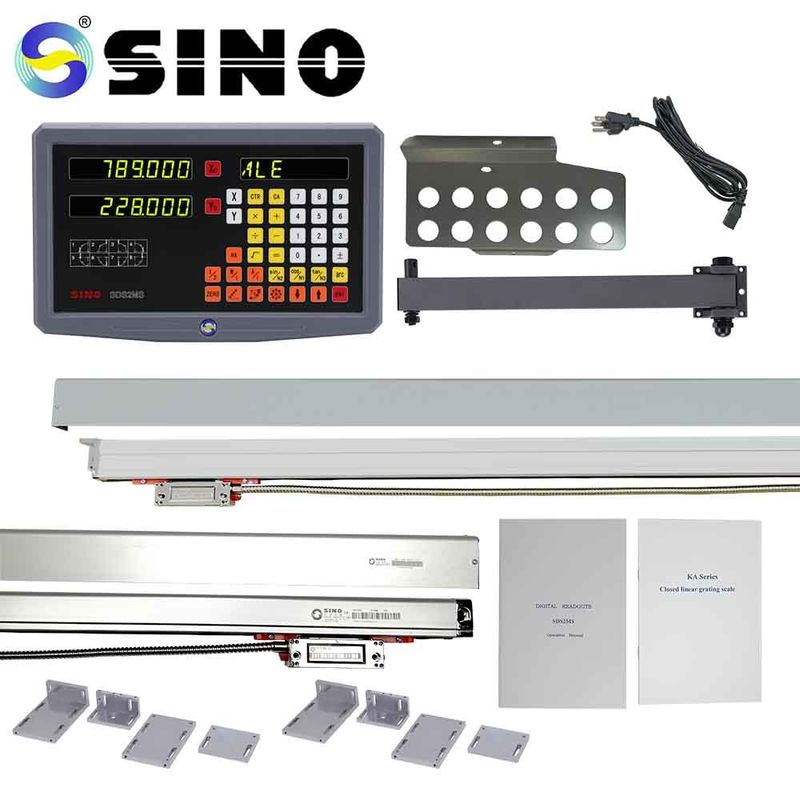

SINO two axes economy LED boring machine digital readout system SDS2MS with two grating scales



This economy model digital readout system is special for two axes boring machining.



There is one DRO SDS2MS and two KA-series grating scales. For big machine, usually KA-600 or KA-300 model.



And the standard cable of the scales is 3000mm, sometimes extension cables are necessary for the big machine.

The length of extension cable should be 1 to 10 meters.

TTL RS422 Digital Readout System , Square Wave 2 Axis DRO Kit 0

Package list:



Item name Two axes economy LED boring machine digital readout system
Digital Readout (DRO) SDS2MS
Linear scale for axis X KA-600 / KA-300: 70-3000mm
Linear scale for axis Y KA-600 / KA-300: 70-3000mm
Rack for DRO Rack L400
Protection cover for X scale Type D / M
Protection cover for Y scale Type D / M
Bracket for scales

T-bracket (2 sets)

Others Cable / Screws / Manual
