Product Details:
|
| Item Name: | Two Axes Metal LED Boring Machine DRO System | Usage: | Two Axes Boring Machine Positioning |
|---|---|---|---|
| System: | Two Axis LED DRO SDS6-2V | Scale Model: | KA-series: KA-600 Or KA-300 |
| Signal: | KA-series: Square Wave TTL Or RS422 | Resolution: | 5µm/1µm/0.5µm |
| Standard Cable: | 3 Meters | Meas. Travel: | KA-600: 1000-3000mm / KA-300: 70-1020mm |
| Display: | Seven Green Digits LED | Voltage: | 100V-240V For DRO & 5V For Scales |
| High Light: | TTL Linear Scale Digital Readout,Multilingual Linear Scale Digital Readout,2 Axis Magnetic Scale DRO Kit |
||
SINO two axes metal LED boring machine DRO system SDS6-2V with two linear encoders
This LED DRO system system is special for two axes boring positioning.
There is one DRO SDS6-2V and two KA-series grating scales. For big machine, usually KA-300 or KA-600 model.
And the standard cable of the scales is 3 meters, sometimes extension cables are necessary for the big machine.
The length of extension cable should be 1 to 10 meters.
Package list:

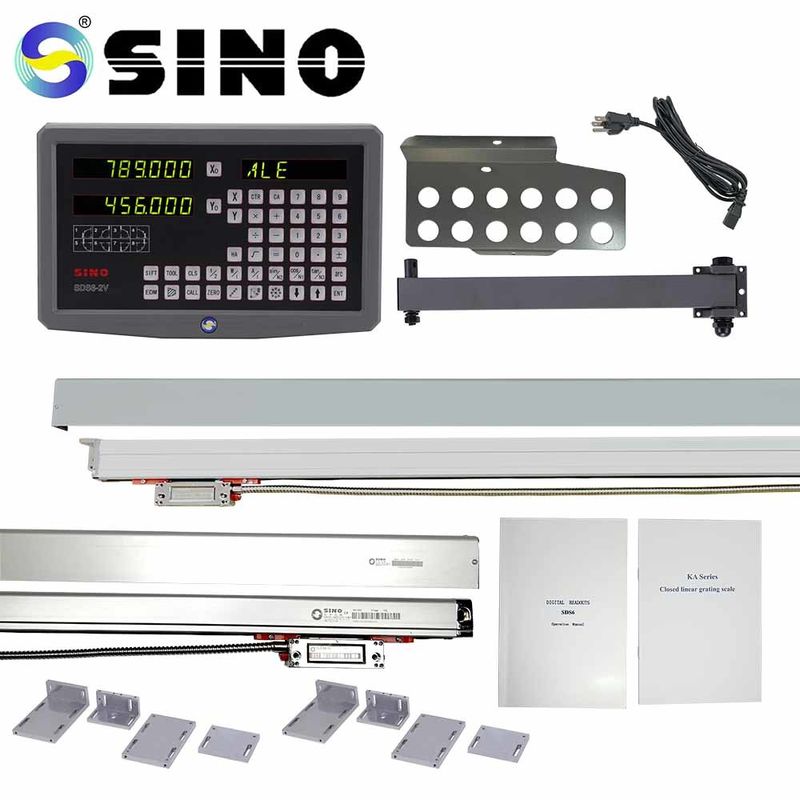

| Item name | Two axes metal LED boring machine DRO system |
| Digital Readout (DRO) | SDS6-2V |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Bracket for scales |
T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
