Product Details:
|
| Item Name: | Two Axes Economy TFT Boring Machine Digital Display Unit | Usage: | Two Axes Boring Machining |
|---|---|---|---|
| System: | TFT Digital Display SDS2-3VA | Scale Model: | Glass Scale: KA-600 Or KA-300 |
| Signal: | Square Wave TTL Or RS422/EIA-422-A | Resolution: | 5 / 1 / 0.5 Micron |
| Standard Cable: | Scale: 3000mm Long | Meas. Travel: | From 70 To 3000mm |
| Display: | Colorful / TFT Unit | Voltage: | 100-240V / 50-60Hz For Display & 5V For Scales |
| High Light: | 5 Micron Boring Machine DRO,100V Boring Machine DRO,240V DRO 2 Axis |
||

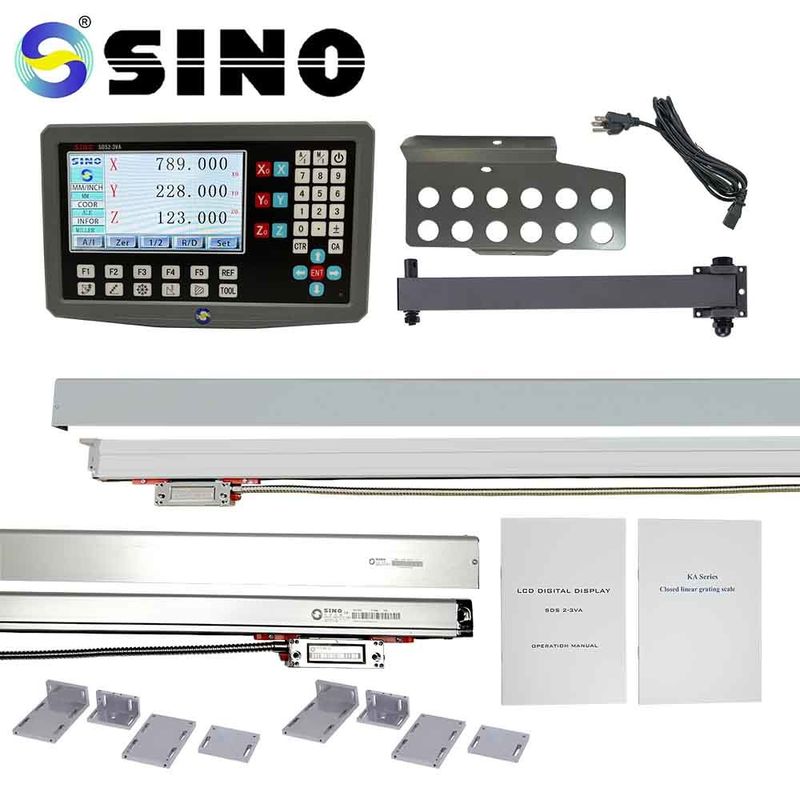

SINO two axes economy TFT boring machine digital display unit SDS2-3VA with two glass scales
This economy TFT digital display unit is special for two axes boring machining requirement.
There is one TFT DRO SDS2-3VA and two KA-series glass scales. For big machine, usually KA-600 or KA-300 model.
And the standard cable of the scales is only 3000mm, sometimes extension cables are necessary for the big machine.
The length of extension cable should be 1M to 10M.
Package list:
| Item name | Two axes economy TFT boring machine digital display unit |
| Digital Readout (DRO) | SDS2-3VA |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Bracket for scales |
T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
