| Item Name: | Two Axes TFT Boring Machine DRO Unit | Usage: | Two Axes Boring Machining Propose |
|---|---|---|---|
| System: | TFT DRO SDS200 | Scale Model: | KA-300 Series Or KA-600 Series |
| Signal: | Square Wave RS422/EIA-422-A Or TTL | Resolution: | 5µm / 1µm / 0.5µm （inch Is Possible) |
| Standard Cable: | 3000mm Long | Meas. Travel: | 70mm To 3000mm |
| Display: | Color, TFT Unit | Voltage: | 5V For Encoder; 50-60Hz / 100-240V For DRO |
| High Light: | TFT Boring Machine DRO,2 Axis Boring Machine DRO,Multi Function 2 Axis DRO |
||
SINO two axes Luxury TFT boring machine DRO unit SDS200 with two linear grating scales
This TFT DRO unit is special for two axes boring machine processing.

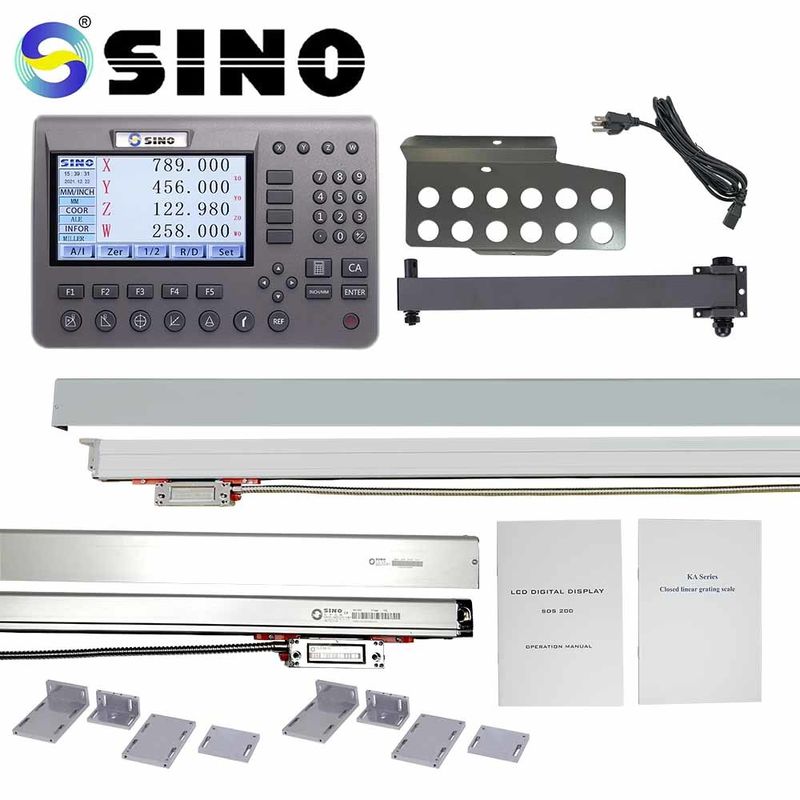

There is one TFT DRO SDS200 and two KA-series linear grating scales. For big machine, usually KA-300 or KA-600 model.
And the standard cable of the scales is 3000mm long, sometimes extension cables are necessary for the big machine.
The length of extension cable should be 1M to 10M.
Package list:
| Item name | Two axes luxury TFT boring machine DRO unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Bracket for scales |
T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
