Product Details:
|
| Item Name: | Magnetic Encoders Heavy Lathes | Usage: | Heavy Lathes Positions |
|---|---|---|---|
| Type: | Open Type Magnetic Encoder | Scale Model: | KA-800M Series Magnetic Sensor |
| Output Signal: | TTL | Resolution: | 5 Micron / 5um |
| Cable Length: | 3 Meter | Max Length: | 1000mm |
| Protection Level: | IP 67 | Electrical Protection: | Power Polarity Inversion Protection, Output Short-circuit Current Protection |
| High Light: | 24V Optical Linear Encoder,CNC Optical Linear Encoder,Open Linear Encoder CNC |
||
SINO Magnetic Encoders Heavy Lathes Positions Lathe Moving Parts
Magnetic Encoder Scale Product Advantage
Long measurement length, Non-contact measurement, without backlash problem, simple installment, and installment permits a bigger error.
Magnetic scales mainly are suitable for the facilities: heavy lathes, metal processing facilities, stone material machinery, wood working machine.
Magnetic Scale's Advantage:
It has strong ability of anti-severe environment, it won't be dirtied or damaged owing to cooling water,
cooling liquid, metal powder or dust, anti-protection ability is very strong.
Technical parameter
| Magnetic Encoders | |
| Reference signal | Each 5mm(C) |
| Pitch | 5mm |
| Ruler tape specifications | 5+5mm |
| Resolution | 5µm |
| Available Gap | 2mm |
| Accuracy | ± (0.035 + 0.02 x L)mm,L:effective measuring length,Unit:m |
| Cable | 5 core or 8 core |
| Output form | TTL or RS-422 |
| Gap between reading head and protective steel belt | 0.8～1.8mm |
| Supply voltage | 5VDC±5%,24VDC±5% |
| Current consumption (no load) | 40mAMAX |
| Current consumption (with load) | 120mAMAX(5V,RL=120Ω) |
| 60mAMAX(28V,RL =1.2kΩ) | |
| Maximum speed | 5m/s(MS T 5) |
| Anti-vibration | 100m/s2[10Hz～2000Hz] |
| Impact resistance | 1000m/s2(11ms) |
| Protection level of reading head | IP 67 DIN 40050/IEC 529 |
| Operating temperature | -20℃～85℃ |
| Storage temperature | -20℃～85℃ |
| Humidity | 100％ Non-condensing |
| Electrical protection | Power polarity inversion protection, output short-circuit current protection |
| Standard reading head provides cable | 3m |
| Long cables can be provided as required, and the maximum cable lengths are as follows: |
LMAX=50m (cable of Read head) |
Encoder Magnetic Mcale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting machine, Wood Cutting Machine, Glass working machine, Material handling

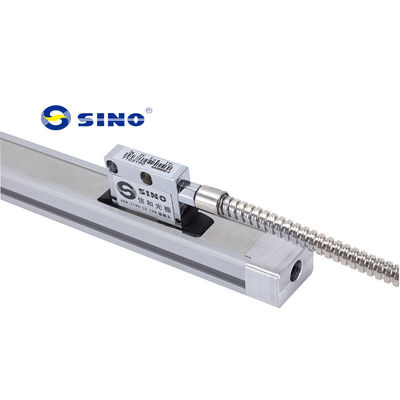

Detail image:
Why choose us?
Magnetic scale can be cut as your requirement
Fully sealed read-head with perfect structure of the profile akes it match IP67 protection class
Advanced technician and inner structure
Automatic gain control technician,reduced the requirement for installation,The gap between the reader and tape can be 3mm (5 micron)
Questions & Answer :
1, What’s max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent for ?
Answer : All these length mean table travel length ( table moving size , NOT table size ) of the machine x y z axis . You may need to add extra 5.5 inch for total length .
3, If i need full set of 2 Axis dro with scales for my lathe machine , how should i purchase them ?
Answer : You can select, they are " 1pc 2 Axis dro " " Travel length **mm of linear encoder or magnetic encoder" " Travel length ***mm" , then you will receive what you want .
4, My machine x axis moving length is 260mm , and y axis moving length is 530mm , can you offer this kind length that not listed in the options ?
Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 270mm scale and 570mm scale for your machine .
5, If i only buy 1 piece scale separately , can i get the user manual ?
Answer : The user manual comes with DRO , But you can contact the seller to get download .
6, What should I choose for my lathe or mill ?
Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis
7, Can I cut the scale if it's too long for my machine ?
Answer : Technicality NO. if you are novice , otherwise , the scale may probably be damaged and cannot be used
8, Are they all ship by Fed Ex, UPS, DHL ?
Answer : Yes. Standard FedEx support and others are available
