Product Details:
|
| Item Name: | Encoder Magnet Encode | Usage: | Prosition Tools For Machine |
|---|---|---|---|
| Type: | Open-type Magnetic Encoder | Pitch: | 5mm For Magnetic |
| Output Signal: | TTL Or RS422 | Resolution: | 5um |
| Cable Length: | 3 Meter Standard | Max Length: | From 120mm To 100m |
| Protection Level: | IP 67 Rating | Electrical Protection: | Power Polarity Inversion Protection, Output Short-circuit Current Protection |
| High Light: | SINO Magnetic Linear Encoder,5m/s Magnetic Linear Encoder,Open SINO Linear Encoder |
||

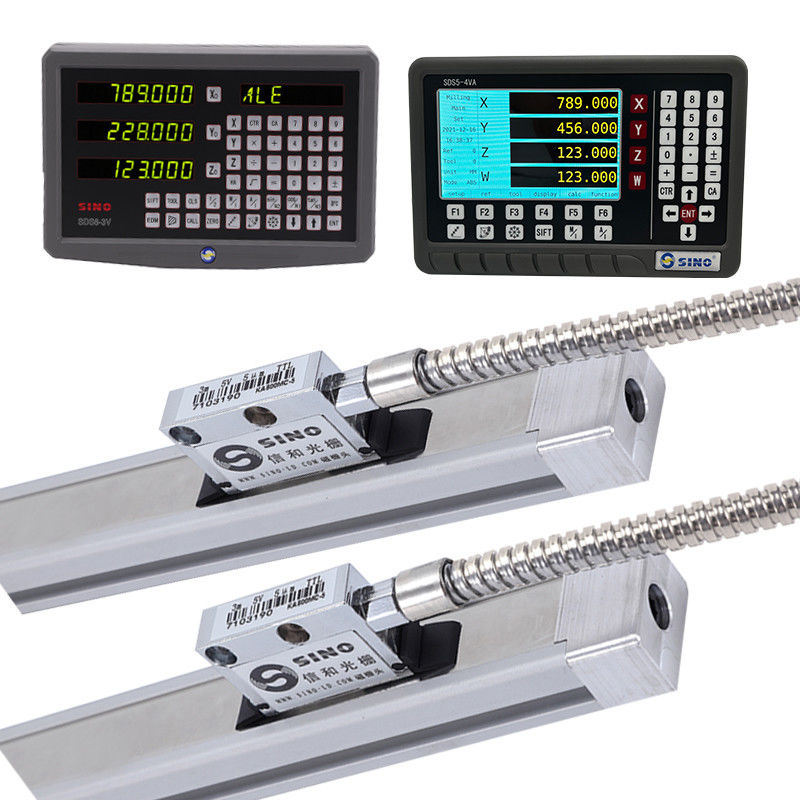

SINO Encoder Magnet Encoder 10m 12m 50m KA800 10m Long Measurement
Magnetic Encoder Scale Product Advantage,
Sealed read-head with the perfect structure of the profile akes it matches IP67 protection class
The tape is composed of MB50 with a pitch of 5+5mm and a protective stainless steel tape. It is smoothly pasted on a special aluminum tape shell
Rubber wiper to clean out surface completely
Advanced technicians and inner structure
Non-contact measurement, without backlash problem, simple installment, and installment permit a bigger error.
Magnetic scales mainly are suitable for the facilities: heavy lathes, metal processing facilities, stone material machinery, woodworking machine
Technical parameter
| Magnetic Scale Sensor | |
| Reference signal | Each 5mm(C) |
| Pitch | 5mm |
| Ruler tape specifications | 5+5mm |
| Resolution | 5µm |
| Available Gap | 2mm |
| Accuracy | ± (0.035 + 0.02 x L)mm,L:effective measuring length,Unit:m |
| Cable | 5 core or 8 core |
| Output form | TTL or RS-422 |
| The gap between reading head and protective steel belt | 0.8～1.8mm |
| Supply voltage | 5VDC±5%,24VDC±5% |
| Current consumption (no load) | 40mAMAX |
| Current consumption (with load) | 120mAMAX(5V,RL=120Ω) |
| 60mAMAX(28V,RL =1.2kΩ) | |
| Maximum speed | 5m/s(MS T 5) |
| Anti-vibration | 100m/s2[10Hz～2000Hz] |
| Impact resistance | 1000m/s2(11ms) |
| Protection level of reading head | IP 67 DIN 40050/IEC 529 |
| Operating temperature | -20℃～85℃ |
| Storage temperature | -20℃～85℃ |
| Humidity | 100％ Non-condensing |
| Electrical protection | Power polarity inversion protection, output short-circuit current protection |
| Standard cable | 3m, LMAX=50m (cable of Read- head) |
| Measurement length cable |
|
Encoder Magnetic Mcale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glassworking machine, Material handling
Detail picture:
Why choose us?
Magnetic scale can be cut as your requirement
A fully-sealed read-head with the perfect structure of the profile makes it match the IP67 protection class
Advanced technician and inner structure
Automatic gain control technician reduced the requirement for installation, The gap between the reader and tape can be 3mm (5 microns)
Questions & Answer :
1, What’s the max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent?
Answer: All these lengths mean table travel length ( table moving size, NOT table size ) of the machine x y z-axis. You may need to add an extra 5.5 each for the total length.
3, If I need a full set of 2 Axis dro with scales for my lathe machine, how should I purchase them?
Answer: You can select, they are " 1pc 2 Axis dro " " Travel length **mm of the linear encoder or magnetic encoder" " Travel length ***mm", then you will receive what you want.
4, My machine's x-axis moving length is 260mm, and y-axis moving length is 530mm, can you offer this kind of length that is not listed in the options?
Answer: Each scale measuring range has a 20mm increment. That means the 250mm scale measuring range can reach up to 270mm. So you can select the 270mm scale and 570mm scale for your machine.
5, If i only buy 1 piece scale separately, can I get the user manual?
Answer: The user manual comes with DRO, But you can contact the seller to get the download.
6, What should I choose for my lathe or mill?
Answer: The lathe usually is a 2 axis readout while the mill can be either 2 axes or 3 axis
7, Can I cut the scale if it's too long for my machine?
Answer: Technicality NO. if you are a novice, otherwise, the scale may probably be damaged and cannot be used
8, Are they all shipped by Fed Ex, UPS, DHL?
Answer: Yes. Standard FedEx support and others are available
