Product Details:
|
| Item Name: | Three Axes LED Boring Machine DRO Package | Usage: | Three Axes Boring Positioning Propse |
|---|---|---|---|
| System: | Three Axes LED DRO SDS2-3MS | Scale Model: | KA-600/KA-300 Series Linear Glass Ruler |
| Signal: | Standard TTL Or EIA-422-A | Resolution: | 0.0002" / 0.005mm / 5 Micron |
| Standard Cable: | Flexible Metal Conduit 3 Meters | Meas. Travel: | Glass Ruler: Within 3000 Mm |
| Display: | 3 Axes / 7 Digits / Green LED | Voltage: | 50-60Hz / 100-240V For DRO |
| High Light: | 50Hz Boring Machine DRO,60Hz Boring Machine DRO,ISO9001 DRO 3 Axis |
||
SINO three axes economy LED boring machine digital counter set SDS2-3MS with three KA glass rulers
This LED DRO package is special for three axes boring machine requirement.
There are three KA-series glass rulers with one LED DRO SDS2-3MS. For big machine, encoders should be KA-600 or KA-300 model.
And the standard cable of the scales is flexible metal conduit 3000mm, sometimes extension cables are necessary for the big machine.
The length of extension cable should be 1M to 10M.

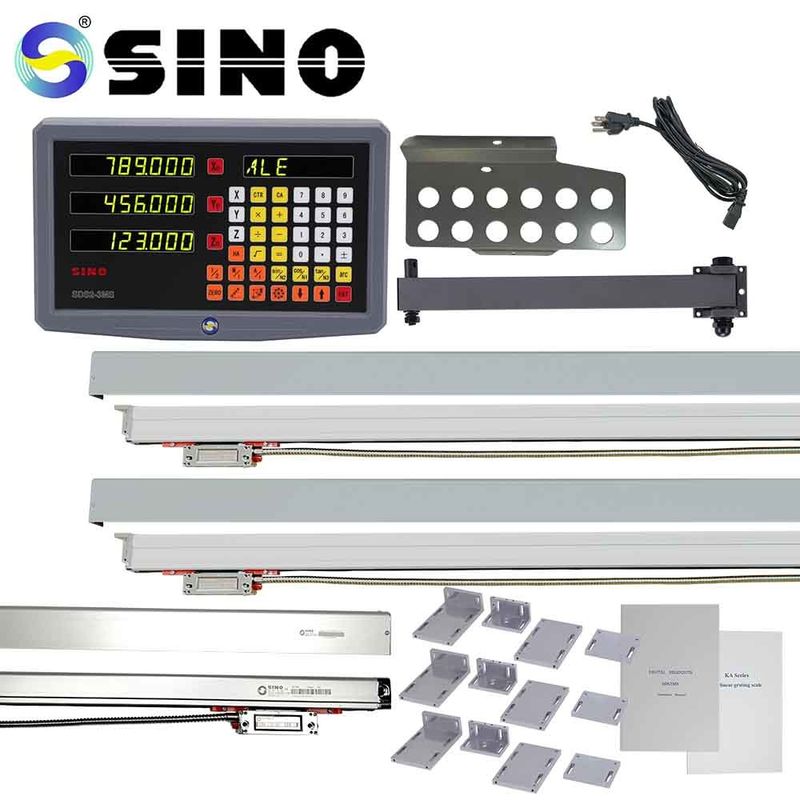

Package list:
| Item name | Three axes economy LED boring machine DRO package |
| Digital Readout (DRO) | SDS2-3MS |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Protection cover for Z scale | Type D / M |
| Bracket for scales |
T-bracket (3 sets) |
| Others | Cable / Screws / Manual |
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
