Product Details:
|
Item Name: | Metal Single Axis Digital Readout Package | Usage: | Single Axis Positioning |
---|---|---|---|
System: | Single Axis DRO SDS3-1 | Scale Model: | KA Series Linear Encoder |
Shell: | Metal DRO | Resolution: | 5µm / 0.0002" Resolution |
Display: | One Axis / 7 Digits / Green LED | Additional Function: | EDM, RS232-C Output Are Possible To Be Added |
Highlight: | 0.0002" 1 Axis Digital Readout,LED 1 Axis Digital Readout,Multipurpose DRO Measuring Systems |
SINO Single Axis Metal LED Digital Readout Package SDS3-1 with One High Precision 5 micron Linear Encoder
This digital readout package is special for one axis processing propose.
One Metal Single axis DRO SDS3-1 with one high precision KA series 5 micron linear encoder.
The model of the scale could be chosn on the basic of the detail requirement.

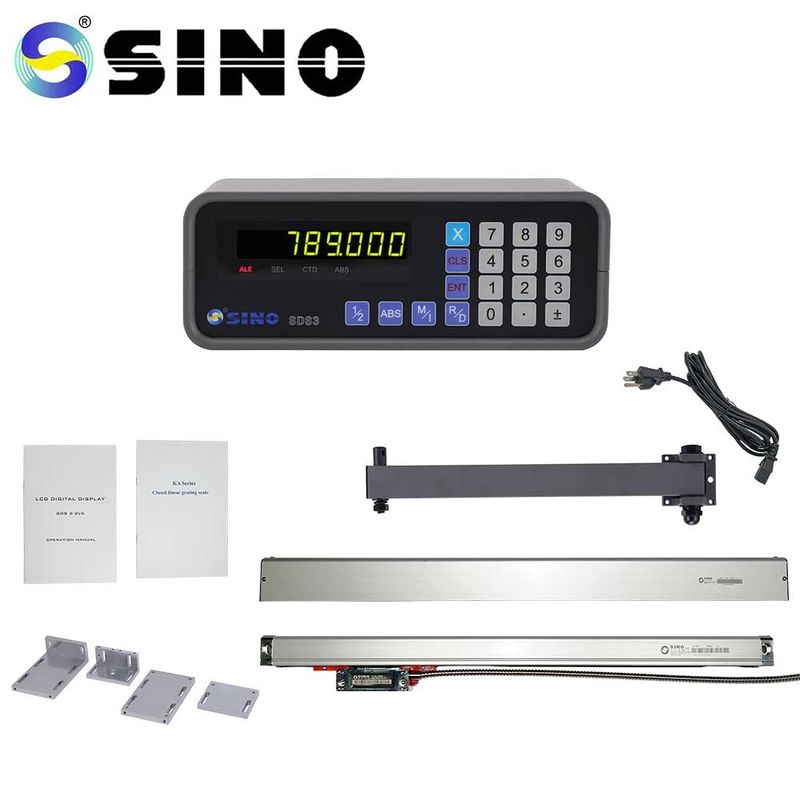

Package list:
Item name | Metal Single Axis Digital Readout Package |
Digital Readout (DRO) | SDS3-1 |
Linear scale | 70 ~ 3000mm |
Rack for DRO | L400 |
Protection cover | Depend on the scale model |
Bracket for scales | T-bracket (1 set) |
Others | Cable / Screws / Manual |
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
