T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout

T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout
T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout

Large Image :  T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: ABCD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout

Description

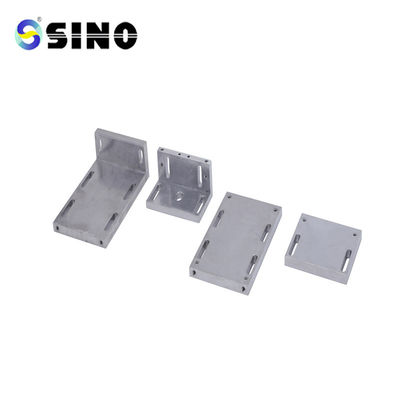

Item Name: SINO T-Frame Mounting Plate Kit Application: Glass Linear Encoder Scale
Usage: T-Frame Mount Plate Set Material: Metal
Color: Silver Precision: High Precision
Type: ABCD Unit: 4pc/Set
High Light:

T Frame CNC Machine Accessories

,

Mounting Plate CNC Machine Accessories

,

Silver Digital Readout Mounting Plate

SINO T-Frame Mounting Plate Kit For Linear Encoder Scale Reading Head

Metal T-Frame mounting plate kits are spare parts designed for the installation of DRO linear scales

in the different varieties of machining equipment( lathes,milling machines,ect.)



The installation of linear scale reading head steps are as follows:

a. Install T-frame (optional) onto machine tool.

b. Remove the connection plate fixing the reading head.

c. Adjust the tightening screw on T-frame mounting plate, making it slightly touch the reading head.

d. Use front and rear M5 screw to fix the reading head onto mounting plate of T-frame.

e. Adjust the position of T-frame plates, making the reading head in a relative position to the linear scale.

f. Install the encoder by using T-Frame.





Package included:

T-Frame type-A x 1pc

T-Frame type-B x 1pc

T-Frame type-C x 1pc

T-Frame type-D x 1pc



Detail Information:

T Frame Mounting Plate CNC Machine Accessories Silver For Digital Readout 0
