Product Details:
|
| Item Name: | Linear Magnetic Encoder Strip | Usage: | Big Boring Big Lathe |
|---|---|---|---|
| Type: | Sealed Linear Magnetic | Scale Model: | KA-800M-1mm Pitch |
| Output Signal: | RS422 TTL | Resolution: | 1 Micron |
| Cable Length: | 3 Meter Standard | Measurement Up To: | 1000mm |
| Pitch: | 1mm Pitch | Sensor: | IP67 |
| High Light: | 1 Micron Incremental Linear Encoder,TTL Incremental Linear Encoder,1mm TTL Linear Scale |
||
KA800M Magnetic Encoder Advantage
High precision of up to ± 10µm / 300mm or ± 20µm / 1000mm,
- Measurement length of up to 3–100m,
- Low sensitivity to impact, vibration, and contamination (e.g. dirt and petroleum),
- ease of maintenance due to high resistance to wear, and
High precision 1mm pitch, Long measurement length, Non-contact measurement, without backlash problem, simple installment,
Magnetic scales mainly are suitable for the facilities: heavy lathes, metal processing facilities, stone material machinery, woodworking machine.
Magnetic Scale's Advantage:
It has strong ability of anti-severe environment, it won't be dirtied or damaged owing to cooling water,
the cooling liquid, metal powder, or dust, anti-protection ability is very strong.
Technical parameter
| Magnetic Encoders | |
| Reference signal | Each 5mm(C) |
| Pitch | 1mm |
| Ruler tape specifications | 5+5mm |
| Resolution | 1µm |
| Operating voltage | 5V+±5% |
| Cable | 5 core or 8 core |
| Output form | TTL or RS-422 |
| Max. Moving speed | 30m/min |
| Operating temperature | -20～70℃ |
| High precision of up | ± 10µm / 300mm or ± 20µm / 1000mm |
| Measurement length | 3–100m |
| Humidity | 100％ Non-condensing |
| Standard reading head provides cable | 3m |
Encoder Magnetic Scale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glass-working machine, Material handling
Encoder Magnetic Mcale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glass-working machine, Material handling
Detail image:
Why choose us?
Magnetic scale can be cut as your requirement
Fully sealed read-head with perfect structure of the profile akes it match IP67 protection class
Advanced technician and inner structure
Automatic gain control technician,reduced the requirement for installation,The gap between the reader and tape can be 3mm (5 micron)
Questions & Answer :
1, What’s max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent for ?
Answer : All these length mean table travel length ( table moving size , NOT table size ) of the machine x y z axis . You may need to add extra 5.5 inch for total length .

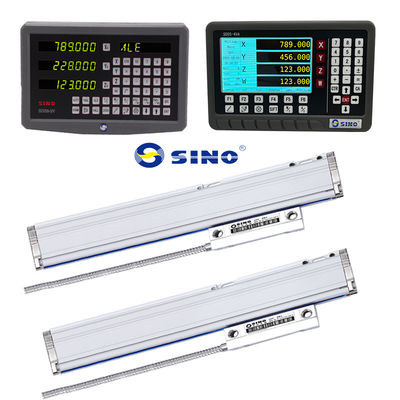

3, If i need full set of 2 Axis dro with scales for my lathe machine , how should i purchase them ?
Answer : You can select, they are " 1pc 2 Axis dro " " Travel length **mm of linear encoder or magnetic encoder" " Travel length ***mm" , then you will receive what you want .
4, My machine x axis moving length is 260mm , and y axis moving length is 530mm , can you offer this kind length that not listed in the options ?
Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 270mm scale and 570mm scale for your machine .
5, If i only buy 1 piece scale separately , can i get the user manual ?
Answer : The user manual comes with DRO , But you can contact the seller to get download .
6, What should I choose for my lathe or mill ?
Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis
7, Can I cut the scale if it's too long for my machine ?
Answer : Technicality NO. if you are novice , otherwise , the scale may probably be damaged and cannot be used
8, Are they all ship by Fed Ex, UPS, DHL ?
Answer : Yes. Standard FedEx support and others are available
